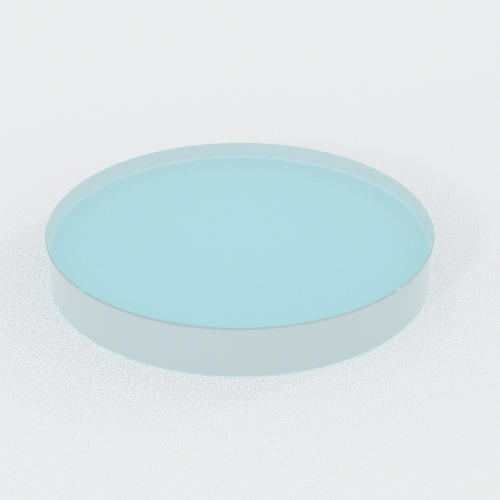

525nm Narrow Band Filter FWHM100nm
Name: 525nm Narrow Band Filter FWHM100nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
Narrow Band Pass Filter 525nm FWHM 100nm Product Details:
BP525-100nm
Narrow bandpass filter
Center wavelength: 525nm
Center wavelength deviation: ±5nm
Bandwidth: 100nm
Wavelength deviation: ±5nm
Transmittance: greater than 90%
Cut-off depth: OD4; OD5
Cut-off range: 200-1100nm
[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]
Other requirements and sizes can be customized
For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office
Our company provides real parameters and accepts comparison tests by third parties or measurement departments
If the parameters do not meet the requirements, our company provides unconditional return and exchange service

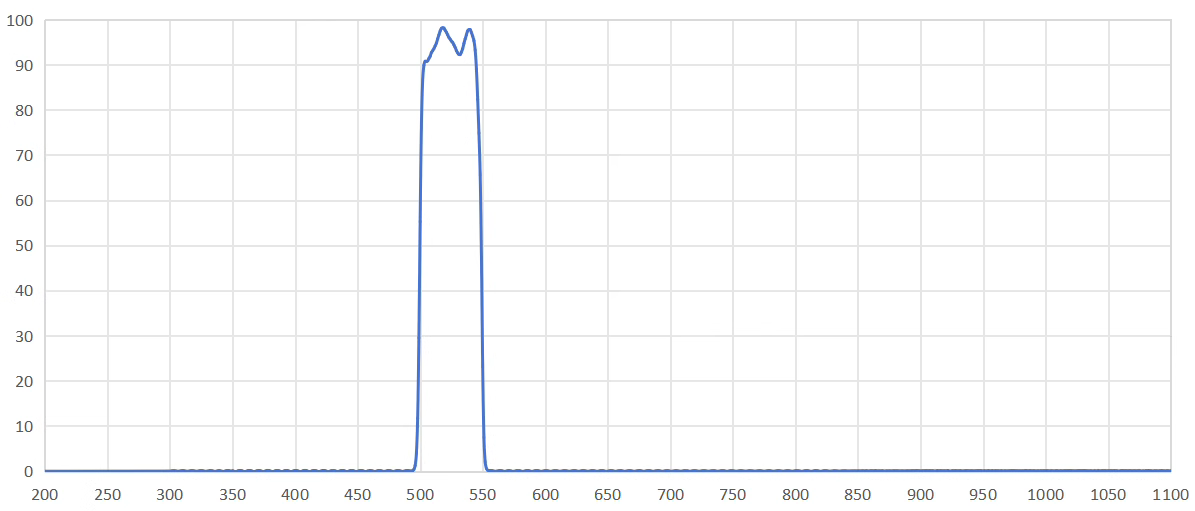

Full Spectrum Curve Measurement：

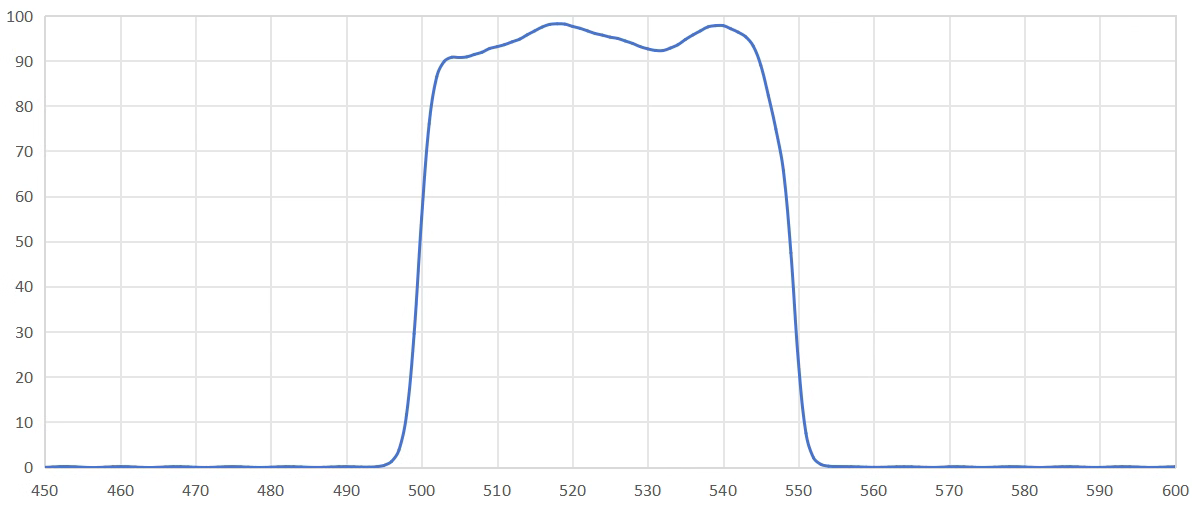

Local Spectrum Curve Measurement：
