UV Light Isolation Filters

Ultraviolet light refers to the light with a wavelength of 10 nanometers to 400 nanometers (nm) in sunlight, which can be divided into UVA (ultraviolet light A, wavelength 320~400 nanometers, long wave), UVB (wavelength 280~320 nanometers, medium wave), and UVC (wavelength 100~280 nanometers, short wave). UVA is the most carcinogenic, and the sunburn and sunburn effects are 1000 times that of UVB. UVC can be blocked by the ozone layer. IR (Infrared) is infrared light, which can cause sunburn, microvascular dilation, dermatitis, and promote the carcinogenicity of ultraviolet light. Ultraviolet light exposure will cause the skin to produce a large number of free radicals, leading to peroxidation of cell membranes, causing melanocytes to produce more melanin, and distributing it upward to the epidermal stratum corneum, causing black spots. Ultraviolet light can be said to be the biggest culprit for skin wrinkles, aging, sagging and dark spots.

To isolate ultraviolet light, you can choose the LP-430nm long-wave filter, which can control the light in the ultraviolet band to OD3, and the average transmittance is only 0.01%. Then the visible light band can pass normally without affecting normal vision.

Function: Reflect UV light, maintain visible light penetration and filter out harmful UV light

Application: lighting equipment, museum lighting optical instruments

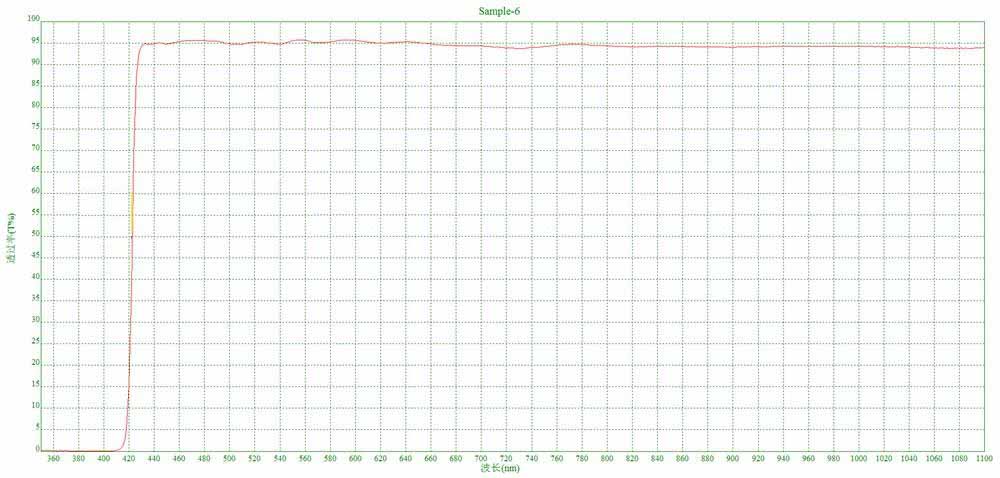

Filter parameters:

Center wavelength: 430+/-5nm

Transmission band: 430nm-1100nm

Cut-off band: 200nm-410nm

Peak transmittance: >90% (according to customer needs)

Product size: (according to customer needs)

Cut-off depth: >OD4-OD6 UV-NIR

Product material: optical grade glass (K9, BK7, B270, D263T, JGS1, color glass, float glass, etc.)

Surface finish: national standard level 3, US military standard 60-40

Available materials, thickness and size:

Blue board: 1.1mm

Tempered glass: 2, 3, 4, 5, 6mm

Heat-resistant glass: 1.1, 2.0, 3.3mm

Square: 10*10 - 220*220mm

Round: Dia10-210mm

Maximum safe temperature:

Blue plate: 150°C

Tempered glass: 250°C

Heat-resistant glass: 450°C

Product features of filters produced by Shenzhen Nahong Optoelectronics:

1. Imported optical glass substrate, with high transmittance, good finish, small thickness tolerance, good flatness and other optical characteristics.

2. Adopting imported Japanese Guangchi vacuum ion evaporation coating process, it has the characteristics of high film strength, uniform cutoff depth, precise center wave positioning and long filter service life

3. Borisun Optics can be produced by professional manufacturers, and the professional optical engineering team guarantees the stability and consistency of the product quality assurance, timely delivery, welcome to call us for inquiries.
