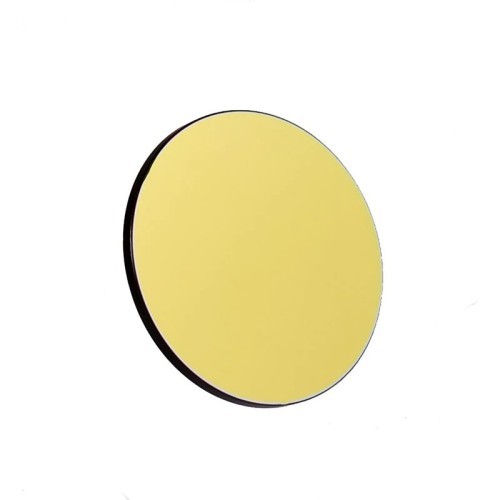

350nm Narrow Band Filter FWHM80nm

Name: 350nm Narrow Band Filter FWHM80nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

EMAIL

Narrow Band Pass Filter 350nm FWHM 80nm Product Details:

BP350-80nm

Ultra-narrow bandpass filter

Center wavelength: 350nm

Center wavelength deviation: ±5nm

Bandwidth: 80nm

Wavelength deviation: ±5nm

Transmittance: greater than 80%

Cut-off depth: OD4; OD5; OD6

Cut-off range: 200-900nm


[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]


Other requirements and sizes can be customized

For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides real parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

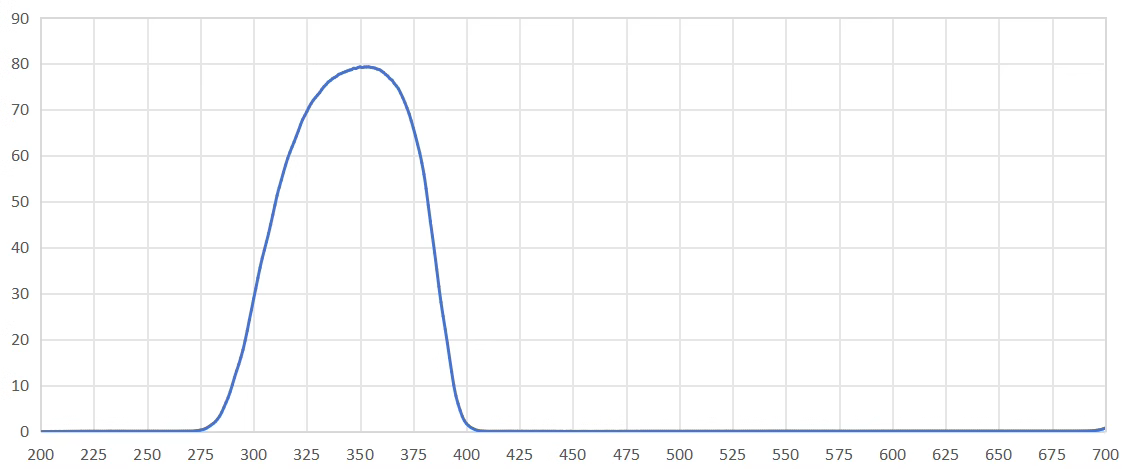

Full Spectrum Curve Measurement:

band pass filter 350nm.png


If you are interested in this produnarrowband pass filter 270nm.pngct and want to know more detailed product information, please fill in the following form to contact us directly:
