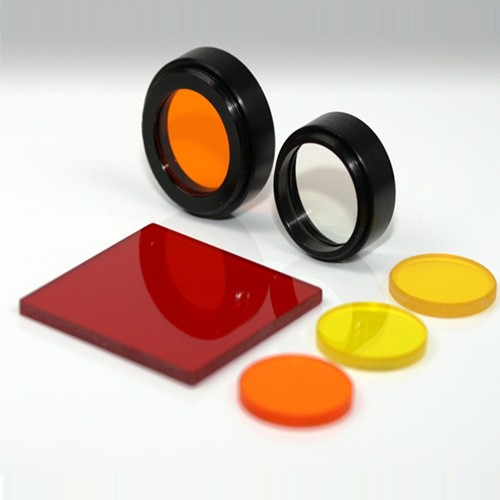

450nm Narrow Band Filter FWHM50nm

Name: 450nm Narrow Band Filter FWHM50nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

EMAIL

Narrow Band Pass Filter 450nm FWHM 50nm Product Details:

BP450-50nm

Narrow bandpass filter

Center wavelength: 450nm

Center wavelength deviation: ±5nm

Bandwidth: 50nm

Wavelength deviation: ±5nm

Transmittance: greater than 90%

Cut-off depth: OD4; OD5

Cut-off range: 200-1100nm

[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]

Other requirements and sizes can be customized

For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides real parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

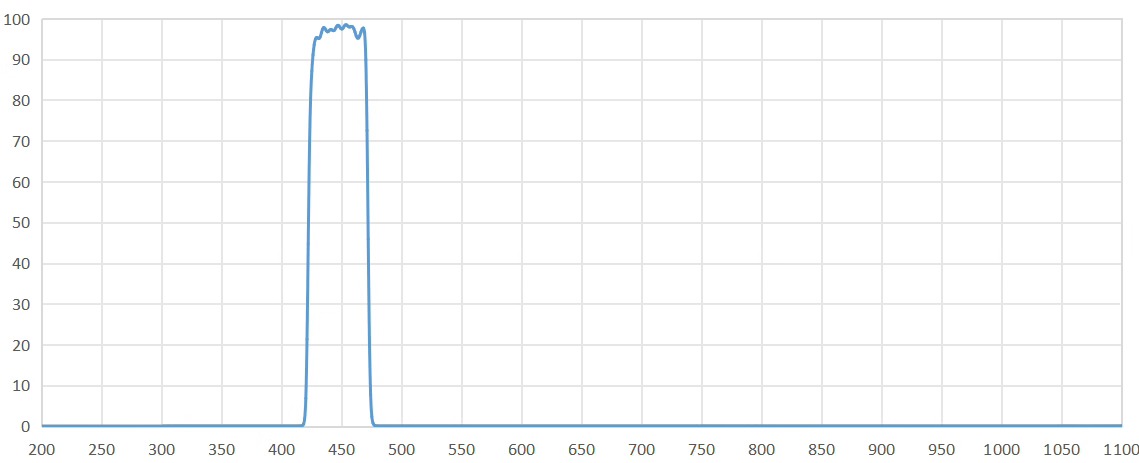

Full Spectrum Curve Measurement:

bandpass filter 450nm.png


If you are interested in this produnarrowband pass filter 270nm.pngct and want to know more detailed product information, please fill in the following form to contact us directly:
