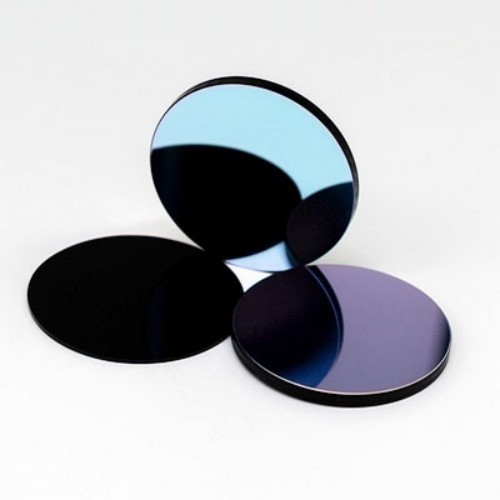

Name: 1300nm Narrow Band Filter FWHM170nmFWHM140nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
Model: BP1300-170nm
Name: Infrared bandpass filter
Center wavelength 1300nm
Bandwidth 170nm
Transmittance > 85%
Cut-off depth > OD3
Cut-off range 200-2000nm
Size D25.4x6mm with ring
[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]
Other requirements and sizes can be customized
For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office
Our company provides real parameters and accepts comparison tests by third parties or measurement departments
If the parameters do not meet the requirements, our company provides unconditional return and exchange service
