Narrow Band Pass Filter 1064nm FWHM 140nm Product Details:

BP1064-140-(0-38°)

[This product can be used at a wide angle]

1064nm bandpass filter for wide angle application

Features:

1》Can be used in a wide angle range of 0°-38°

2》High transmittance>95% (measured highest peak value 98.331%)

3》Wide cutoff range 200-1350nm

4》In a wide angle range, the core wavelength 1064nm has high transmittance>95%

Basic parameters

Incident angle: 0°

Medium Center wavelength 1104nm

Bandwidth 141nm

Core wavelength: >95%@1064nm

Transmittance greater than 95%

Cut-off range 200-1350nm

Cut-off depth OD3

Incident angle changes to: 38°

Center wavelength changes to 1024nm

Bandwidth changes to 128nm

Core wavelength: >95%@1064nm

Transmittance greater than 95%

Cut-off range changes to 200-1250nm

Cut-off depth OD3

[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]

Other requirements and sizes can be customized

For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides real parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

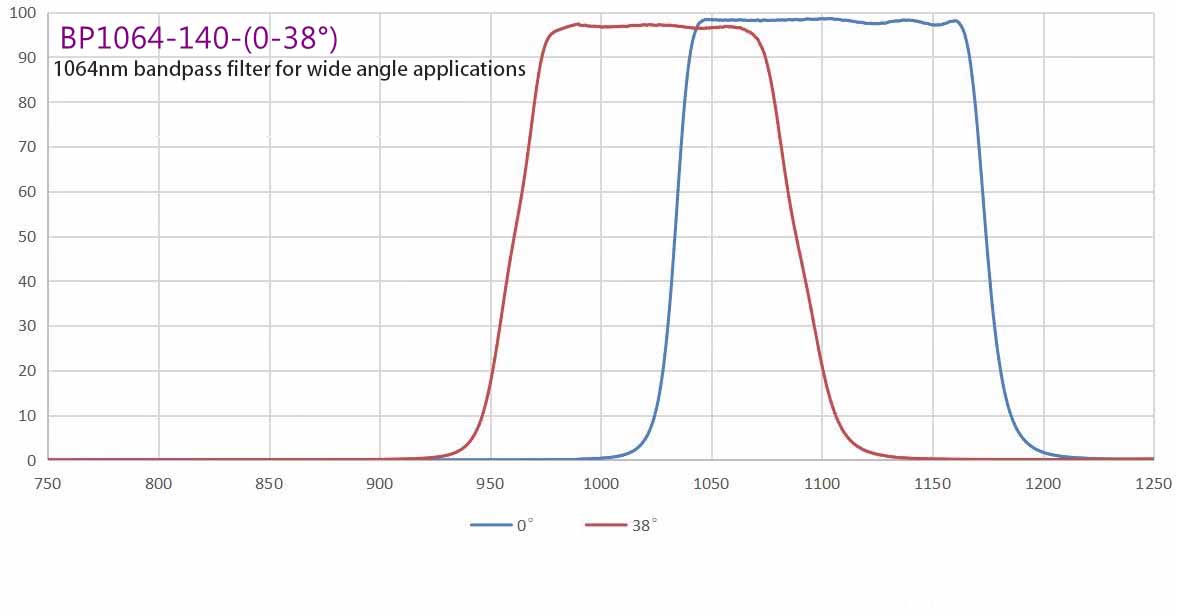

Full Band Transmission Curve
