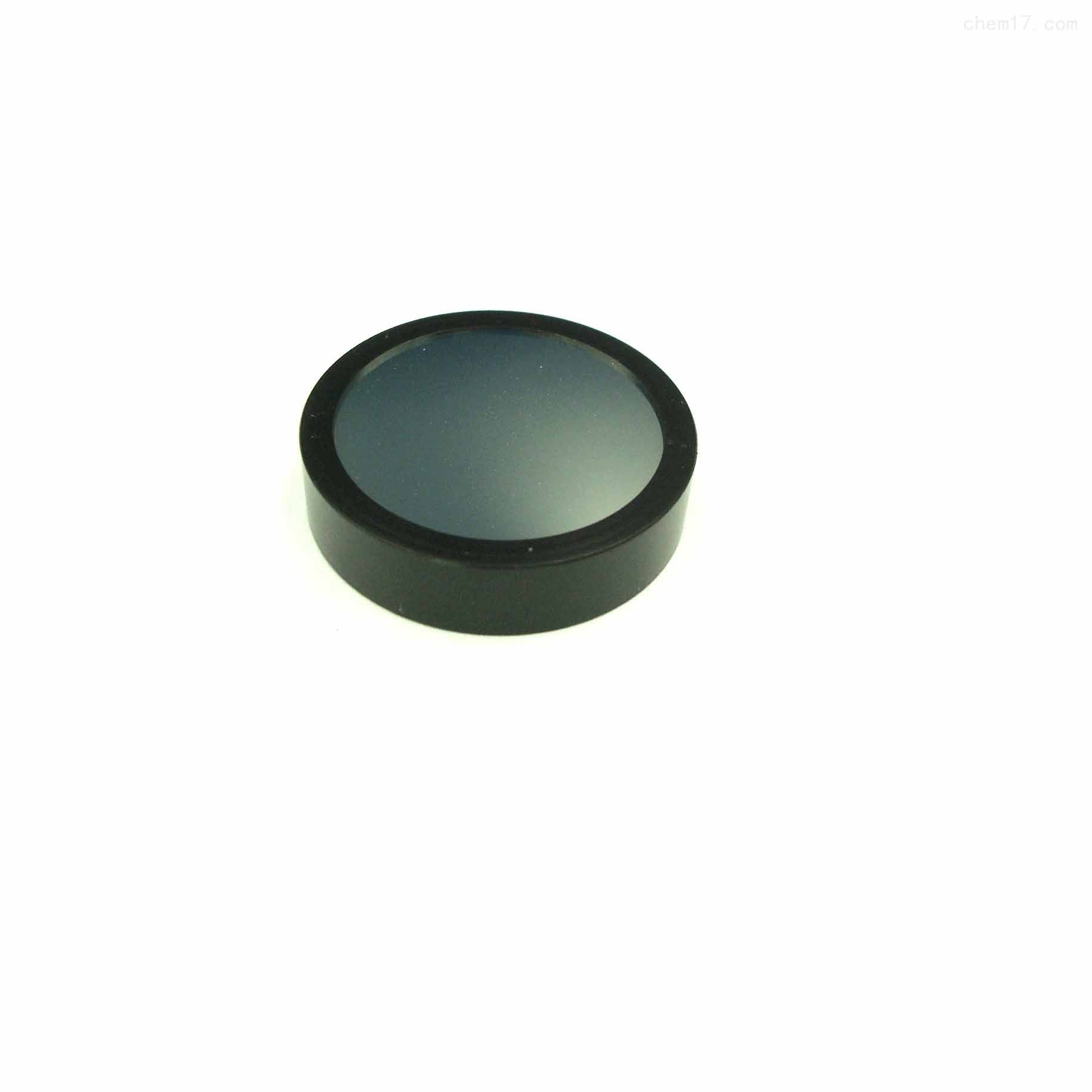

Water Nitrogen Analyzer Filter
Name: Water Nitrogen Analyzer Filter
Substrate material: Fused silica
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

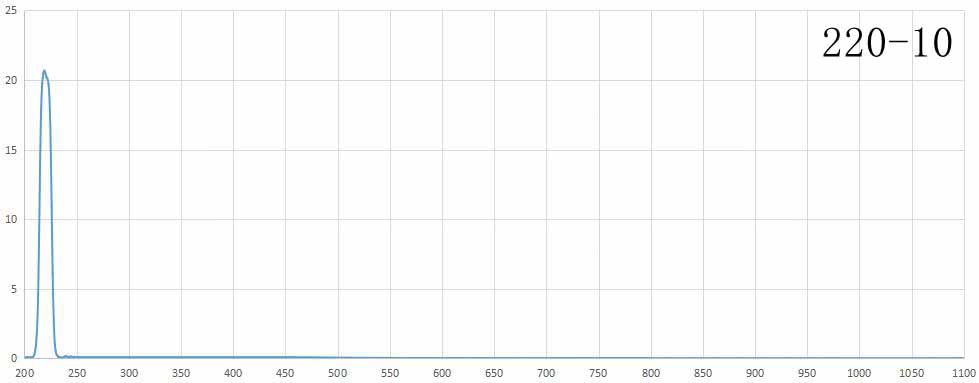

BP220-10 UV narrowband filter
Central Wavelength: 220nm
Bandwidth: 10nm
Cut-off Depth: OD3-OD4
Transmittance: ≥15%
Cut-off Range: 200-1100nm
Regular Supply Sizes: D10mm; D12mm; D12.5mm; D12.7mm, etc.

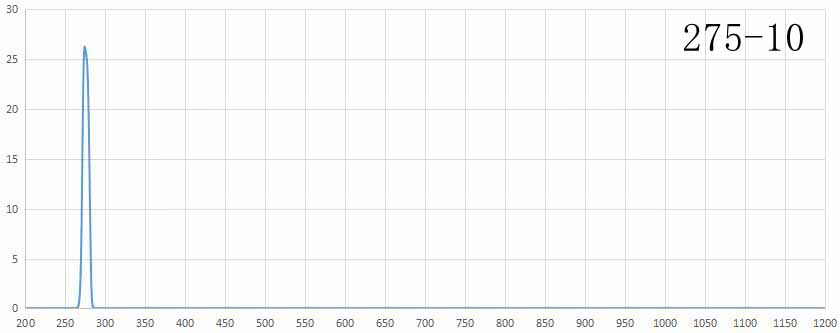

BP275-10 UV narrowband filter
Central Wavelength: 275nm
Bandwidth: 10nm
Cut-off Depth: OD3-OD4
Transmittance: ≥20%
Cut-off Range: 200-1100nm
Regular Supply Sizes: D10mm; D12mm; D12.5mm; D12.7mm, etc.
Note:
1. 220nm can choose 15nm bandwidth products, please contact Borisun Optics for details
2. Other sizes can be customized according to user requirements
