Standard Transmittance Calibration Filters

Name: Standard Transmittance Calibration Filters
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

Features:

Standard transmittance calibration filter

Absorbance calibration filter

Standard neutral density attenuator

Standard absorption attenuator

Use: used for absorbance and transmittance calibration, such as spectrophotometer calibration, transmittance tester calibration, spectrum analyzer calibration, etc.

Using wavelength: 610nm

Attenuator type: The filter is made of doped optical glass. After designing and adjusting the thickness and doping, it is made into a standard transmittance attenuator to ensure a certain transmittance value. It is a non-coated absorption attenuator.

Standard transmittance type:

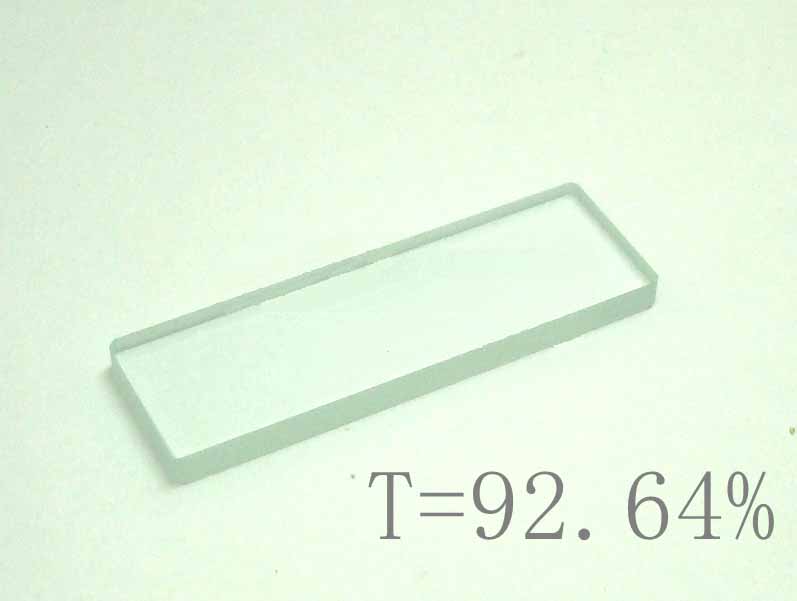

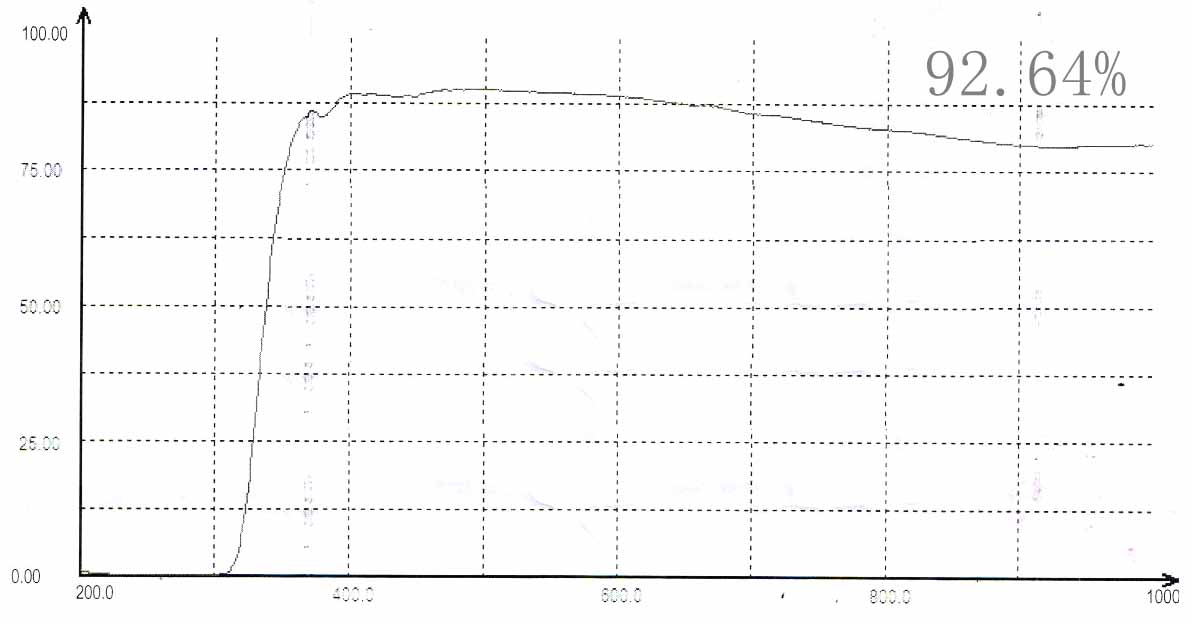

Transmittance: 92.64%±5%; thickness: 2mm

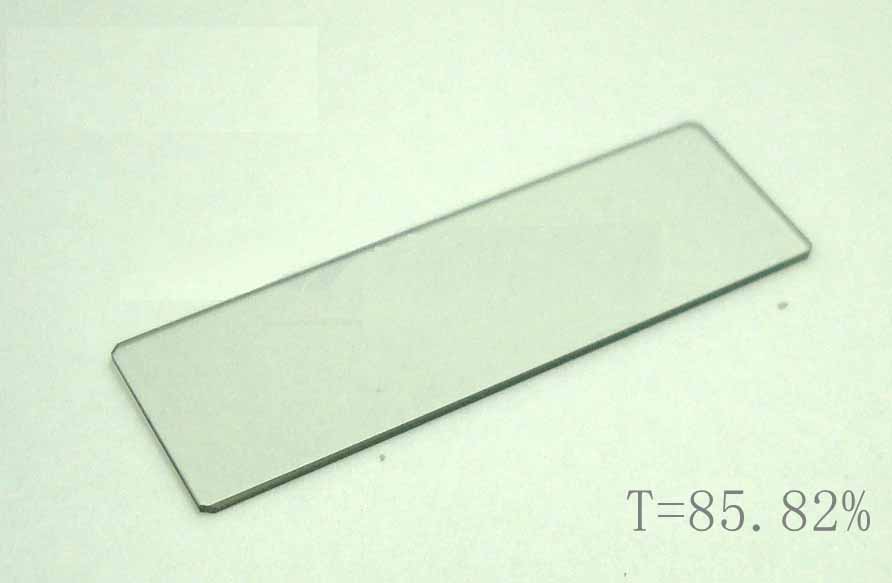

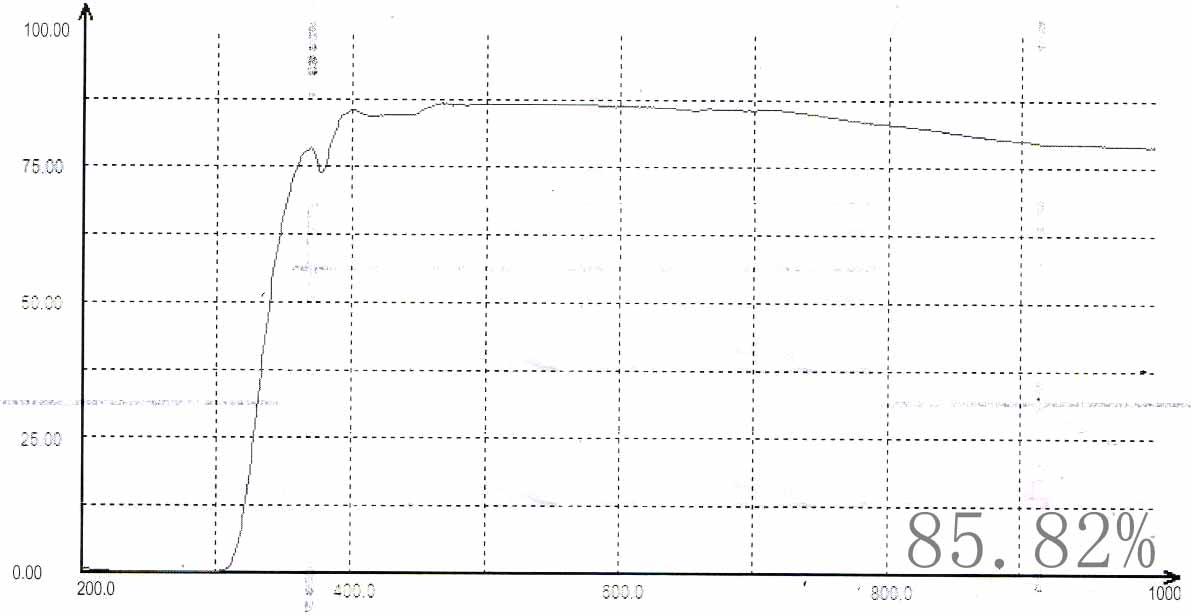

Transmittance: 85.82%±5%; thickness: 0.471mm

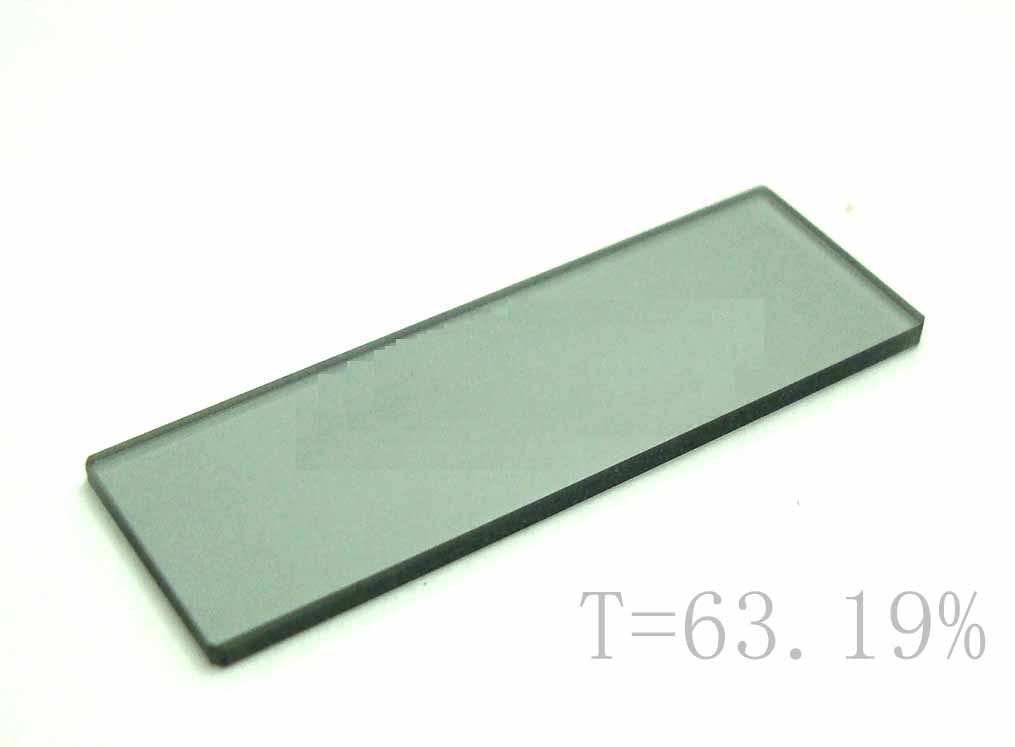

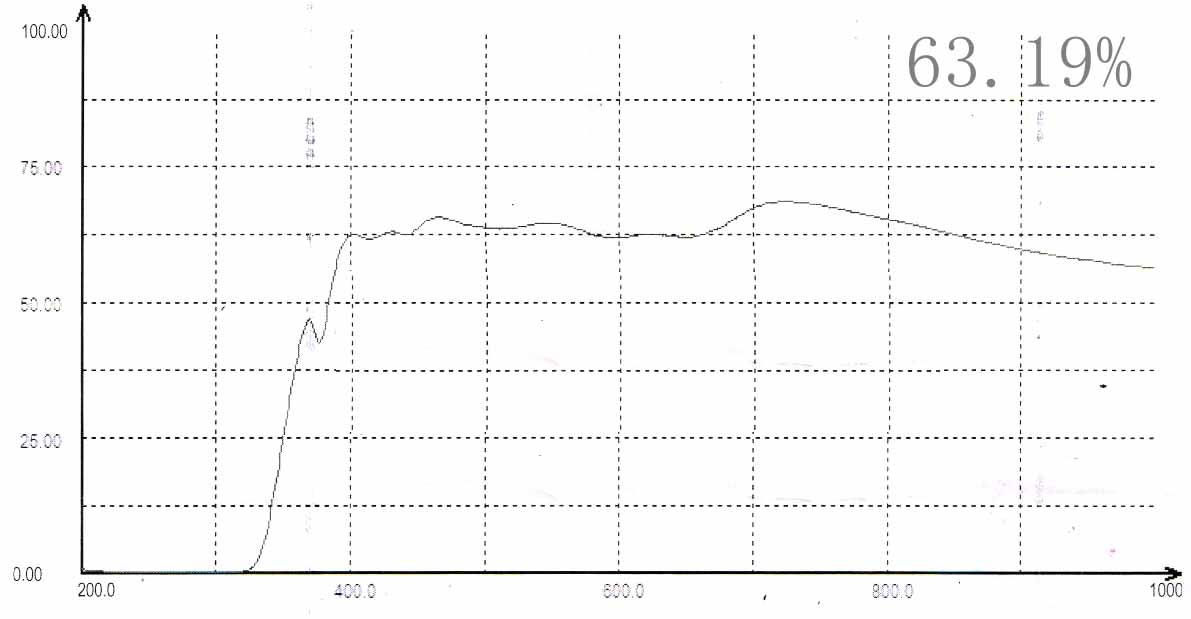

Transmittance: 63.19%±5%; thickness: 1.098mm

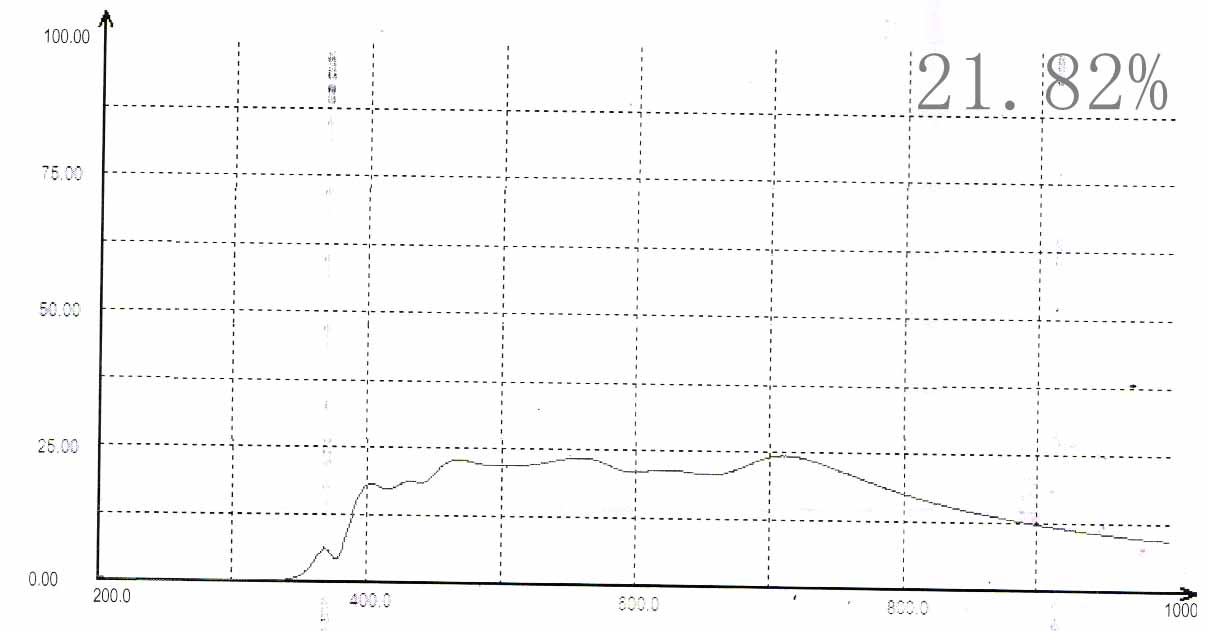

Transmittance: 21.82%±5%; thickness: 2.23mm

For customized other standard transmittance attenuators, please call Ruiyan Optics for consultation
