PCR Fluorescence Analyzer Filter 470-30nm; 525-30nm; 570-20nm; 612-20nm(470-30nm; 525-30nm; 570-20nm; 612-20nm)
Name: PCR Fluorescence Analyzer Filter 470-30nm; 525-30nm; 570-20nm; 612-20nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
PCR Fluorescence Analyzer Filter (cross cutoff depth OD6)

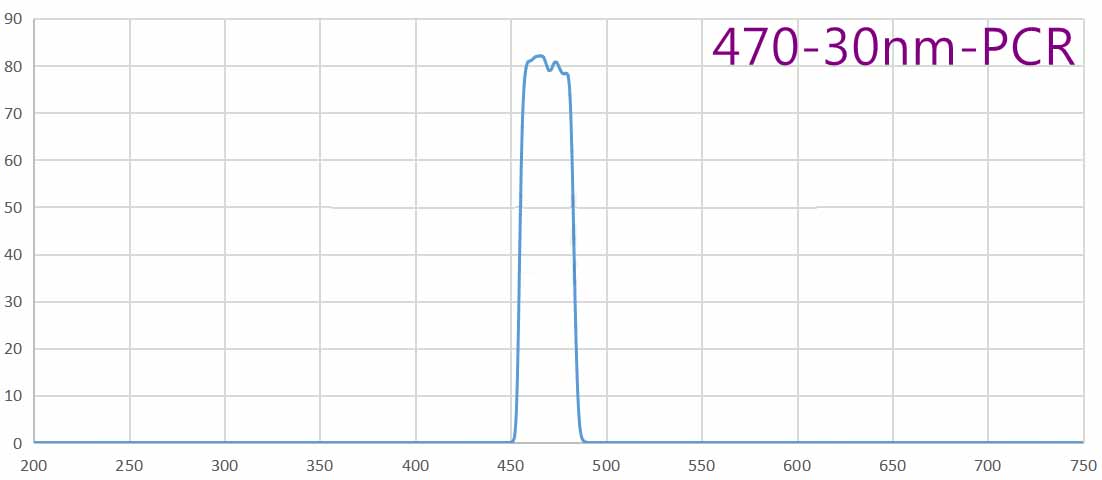

BP470-30nm-PCR
Center wavelength 470nm
Bandwidth 30nm
Transmittance > 80%
Cutoff depth OD5
Cutoff range 200-750nm
Size: D25X2mm; D15X2mm, etc.

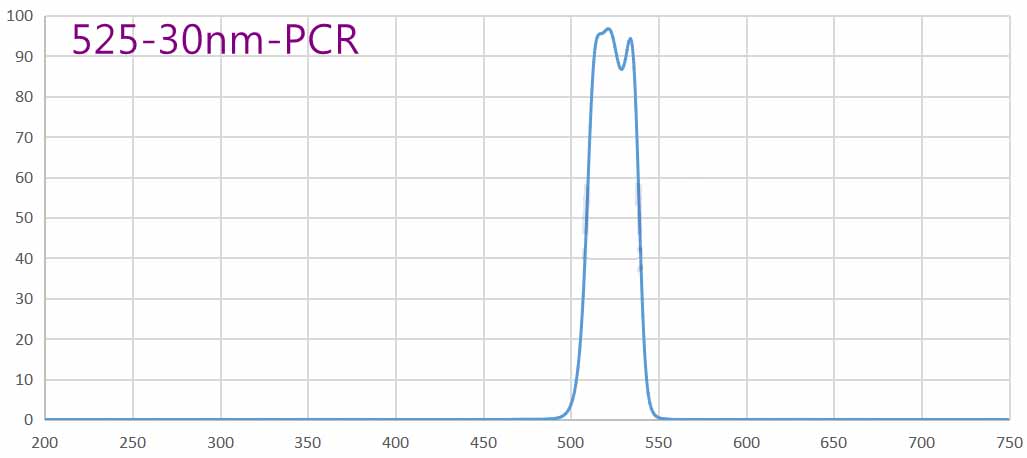

BP525-30nm-PCR
Central wavelength 525nm
Bandwidth 30nm
Transmittance > 85%
Cut-off depth OD5
Cut-off range 200-750nm
Dimensions: D25X2mm; D15X2mm, etc.
BP570-20nm-PCR
Central wavelength 525nm
Bandwidth 20nm
Transmittance > 80%
Cut-off depth OD5
Cut-off range 200-750nm
Dimensions: D25X2mm; D15X2mm, etc.

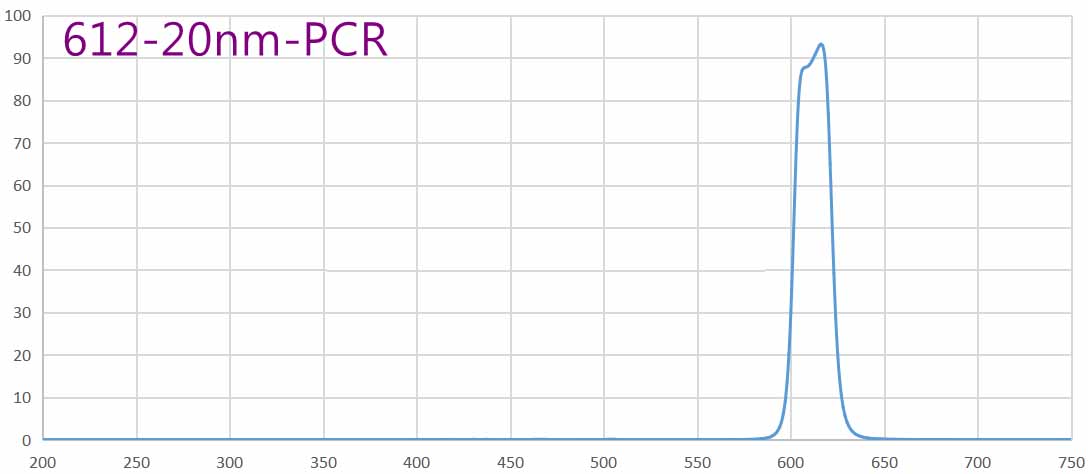

BP612-20nm-PCR
Central wavelength 612nm
Bandwidth 20nm
Transmittance > 80%
Cut-off depth OD5
Cut-off range 200-750nm
Dimensions: D25X2mm; D15X2mm, etc.
