PCR Fluorescence Filters

PCR fluorescence filter (import replacement)

Polymerase Chain Reaction PCR

FAM, HEX, ROX, CY5 (conventional)

CY5.5, CY3 (extended)

Borisun Optics develops high-quality PCR filter sets based on PCR instruments and fluorescence detection, providing key filter components for PCR equipment and providing an alternative solution to solve my country's dependence on imported fluorescence filter sets.

After years of accumulation of fluorescence filter production processes and technologies, and a wealth of experience in R&D, production and application, Borisun Optics has joined hands with PCR instrument manufacturers to officially launch a six-channel high-quality PCR-specific filter set after repeated improvements and verifications.

The PCR-specific filter set provided by Borisun Optics has the characteristics of being able to replace imports, high OD6 cutoff depth, high transmittance of 95%, high cross-cutoff, good transition band steepness, high signal-to-noise ratio, good stability, and long life.

This series of products is used for excitation source applications of LED light sources and laser light sources, excites fluorescent dyes, and generates PCR fluorescent signals. According to the number of channels used by the instrument manufacturer, the channels can be sold separately, or a full set of six-channel filter sets can be purchased.

(If the fluorescence filter set is used for a wide spectrum light source, such as a halogen lamp emission source, please consult Borisun Optics)

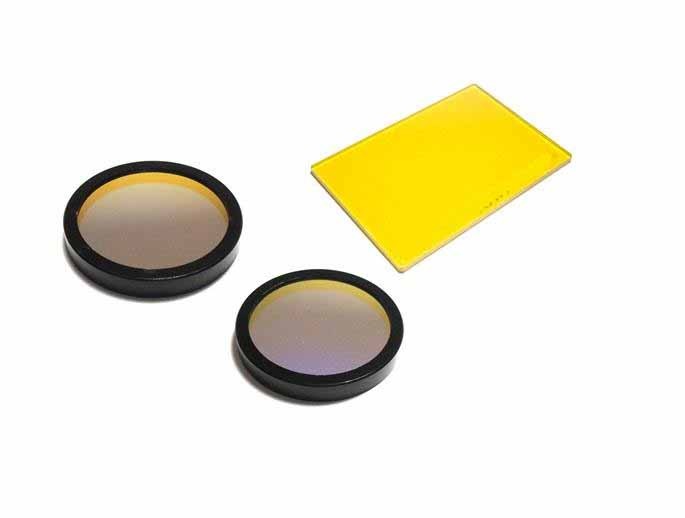

Each set contains an excitation filter, a reflection filter, and a dichroic mirror.

The four sets of PCR filter sets for routine inspection are: FAM, HEX, ROX, CY5

The extended six-channel PCR filter set is: FAM, HEX, ROX, CY5, CY5.5, CY3

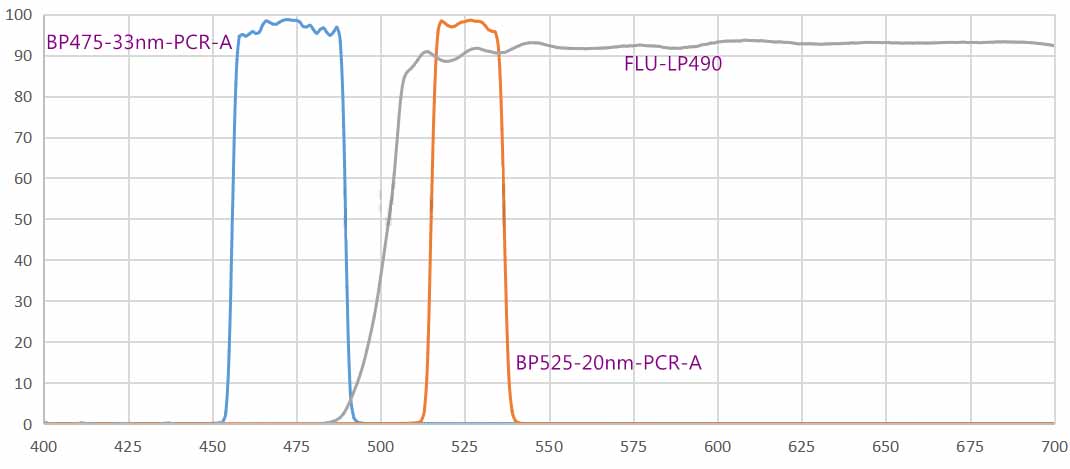

Channel FAM Application:

Excitation and emission fluorescence filter parameters: 475-33-OD6-T90-200-800

Meaning; center wavelength 475nm; bandwidth 33nm; cut-off depth OD6; transmittance 95%; cut-off range 200-800nm

Dichroic mirror parameters: 45-HR400-480-HT510-750

Meaning: incident angle 45 degrees; HR400-480 reflection band 400-480nm; HT510-750 transmission range 510-750nm; transmittance and reflectance 90%

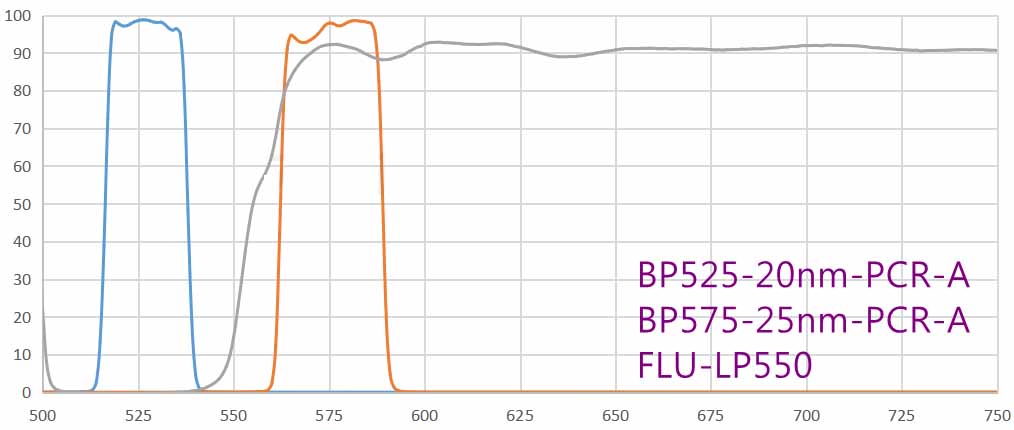

Channel HEX Application:

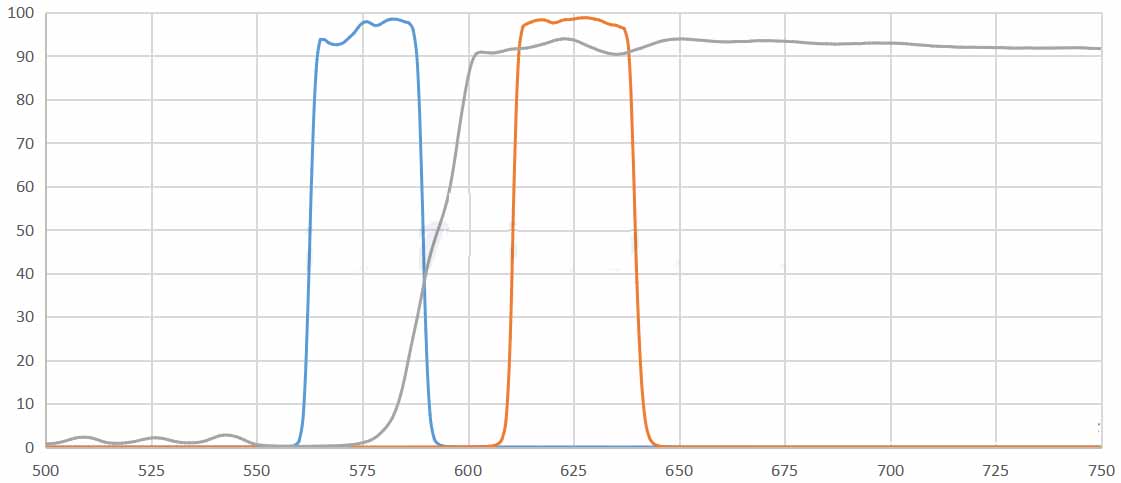

Channel ROX Application:

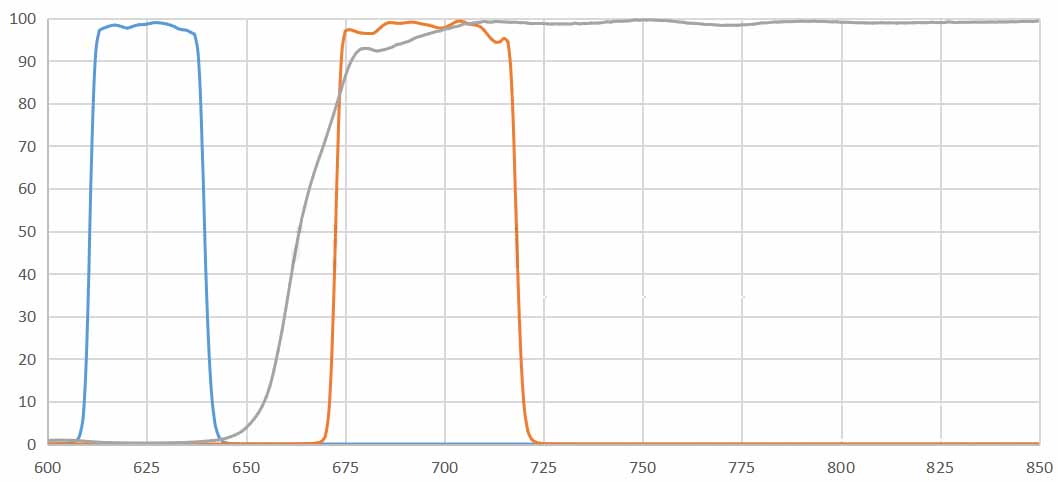

Channel CY5 Application:

Channel CY5.5 Application-Extended Channel:

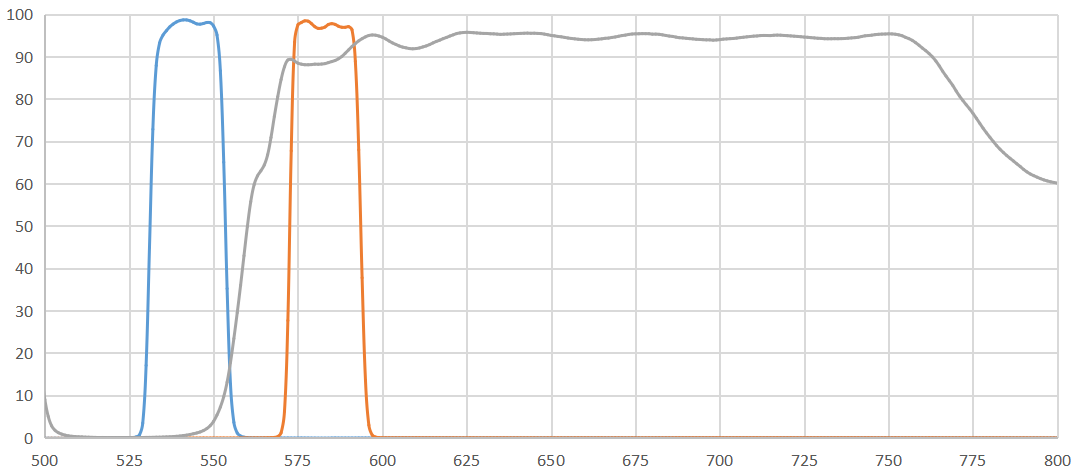

Channel CY3 Application-Extended Channel:

This series of fluorescence filter sets, in addition to PCR research and equipment applications, can also be used in genetics, biology, immunology, imaging fluorescence, etc., and can be adapted to achieve good results.

Fluorescence filters or filter sets of other sizes and specifications can be customized.

If you have any questions, please feel free to contact our professional engineers to answer your questions.
