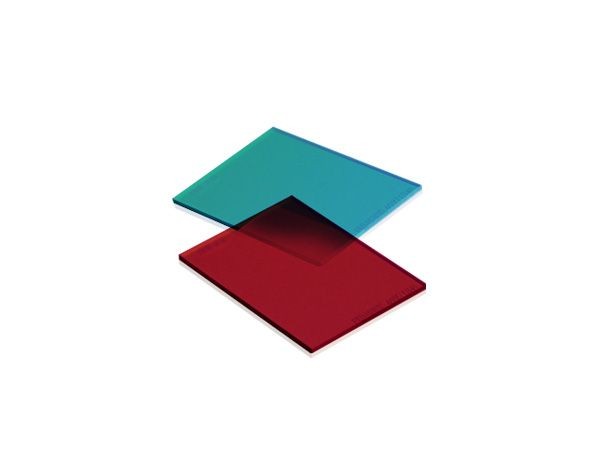

Laser Radar Application Band 940nm Filter
Name: Laser Radar Application Band 940nm Filter
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
Laser Radar Application Band 940nm Filter Parameters
Central wavelength: 940+/-5nm
Incident angle: 0°
Half-peak bandwidth: 40nm
Peak transmittance: >90% (according to customer requirements)
Product size: 3mm-80mm (customizable)
Cut-off wavelength: 200nm-1100nm (according to customer requirements A)
Cut-off depth: >OD3-OD6 UV-NIR
Product material: optical grade glass (K9, BK7, B270, D263T, JGS1, color glass, float glass, etc.)
Surface finish: National standard level 3, US military standard 60-40

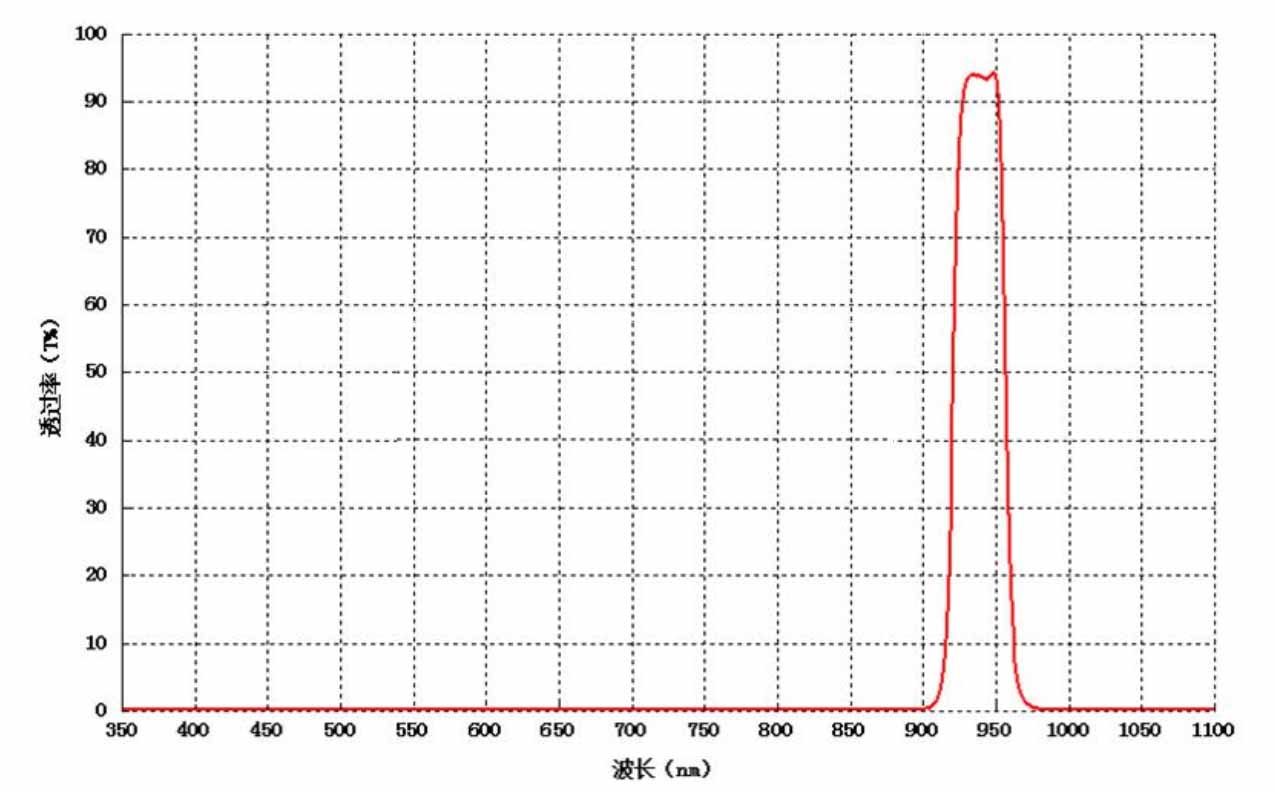

Laser Radar Application Band 940nm Filter Parameters Transmittance Spectrum
