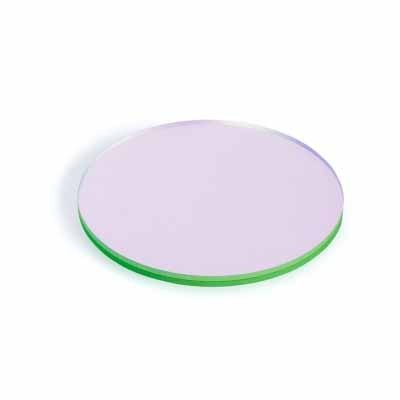

LiDAR 1550nm Laser Mirrors

Name: LiDAR 1550nm Laser Mirrors
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

Borisun Optics can produce: aluminum-plated reflectors, gold-plated reflectors, dielectric reflectors, and metal plus dielectric reflectors. Metal film reflectors have high reflectivity in the widest spectral range, while broadband dielectric film reflectors have a narrower working wavelength range and can reflect according to the wavelength specified by the customer, with an average reflectivity of more than 99%.

Model	Reflection Wavelength Range (nm)	Reflectivity	Model	Reflection Wavelength Range(nm)	Reflectivity
850nm mirror	800-900	Rave≥99%	940nm mirror	800-980	Rave≥99%

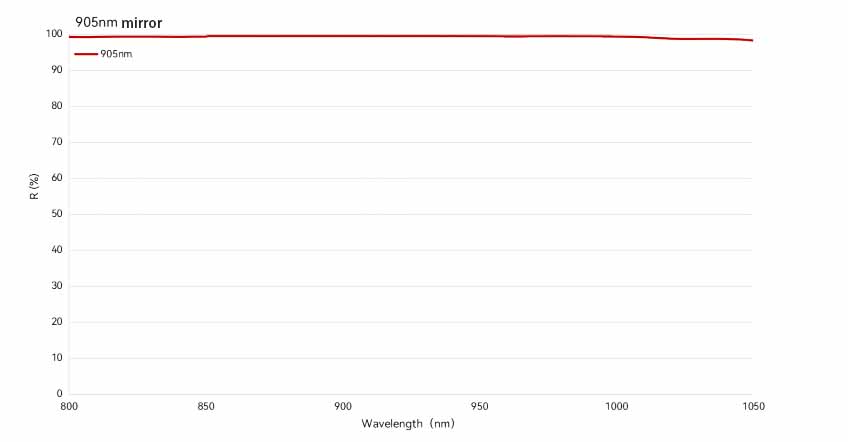

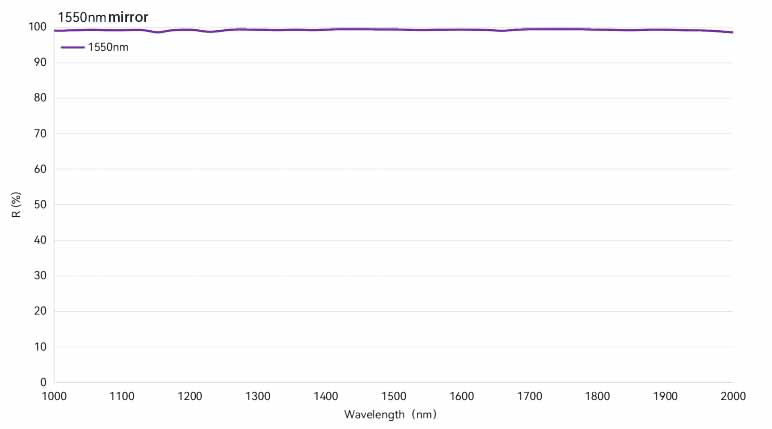

905nm mirror	890-920	Rave≥99%	905nm mirror	1500-1600	Rave≥99%
Note: Incident angle: 45 degrees. Please contact us for more stock models.
