Camera Bandpass Filters
Name: Camera Bandpass Filters
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

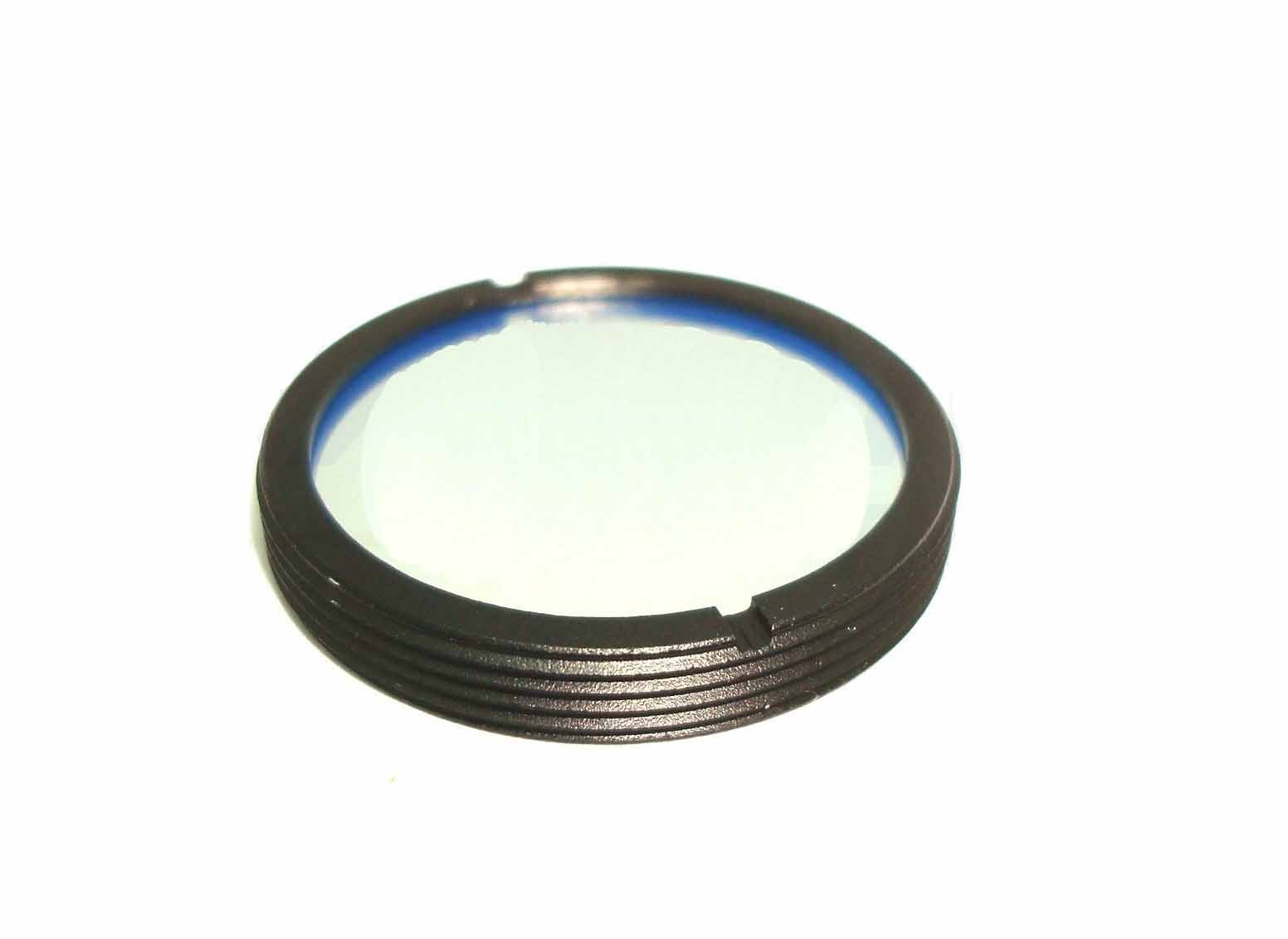

With standard C-mount outer ring, usually installed between the lens and the camera, installed in the front tube of the camera CCD

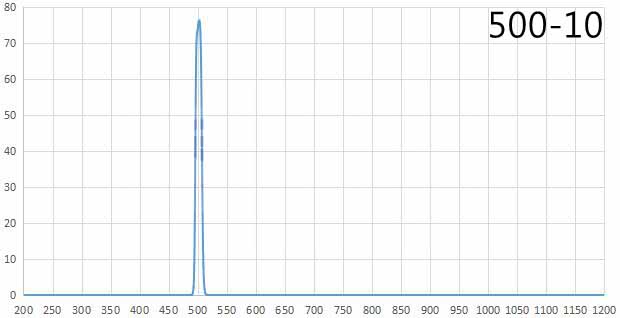

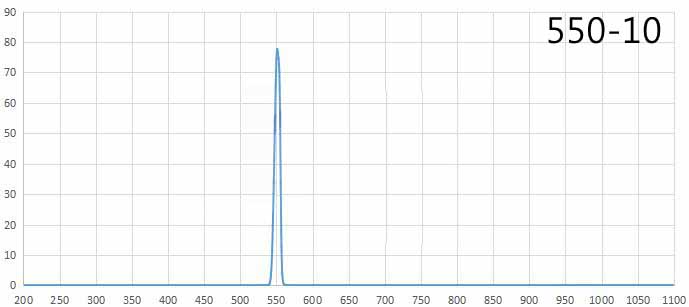

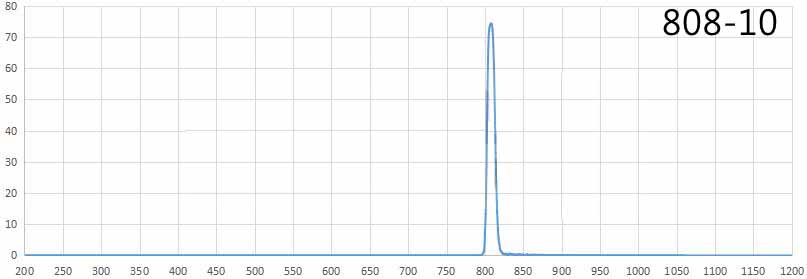

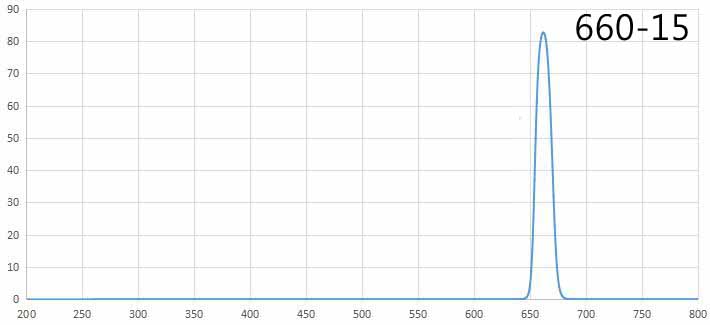

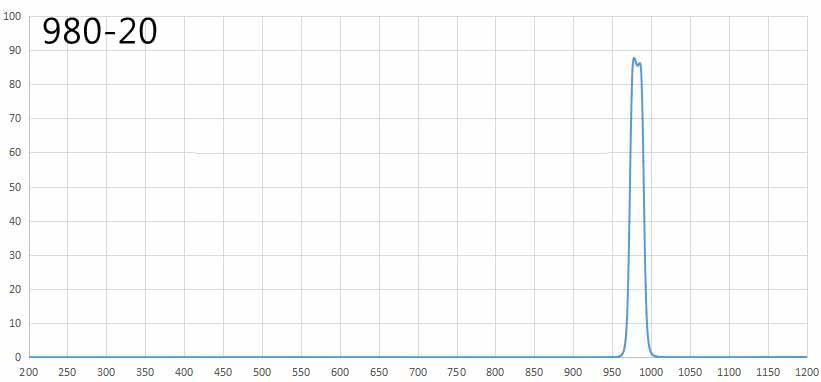

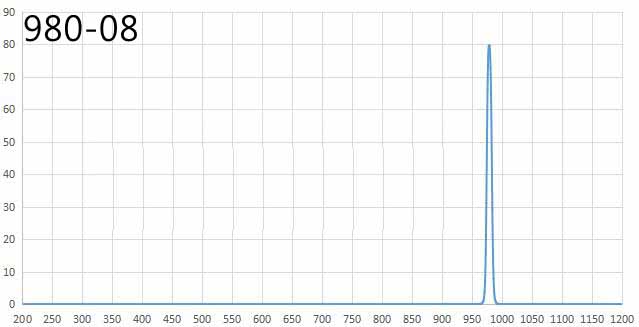

Center wavelength: 420nm, 500nm; 550nm; 600nm, 650nm; 660nm; 808nm; 980nm, etc.
Bandwidth: 10nm; 15nm; 20nm; 40nm, etc.
Cut-off depth: > OD3, OD4
Cut-off range: 200-800nm; 400-700nm; 300-1200nm, etc.
Transmittance: > 75%; > 80%; > 90%
Matching interface: c-mount port for filter
