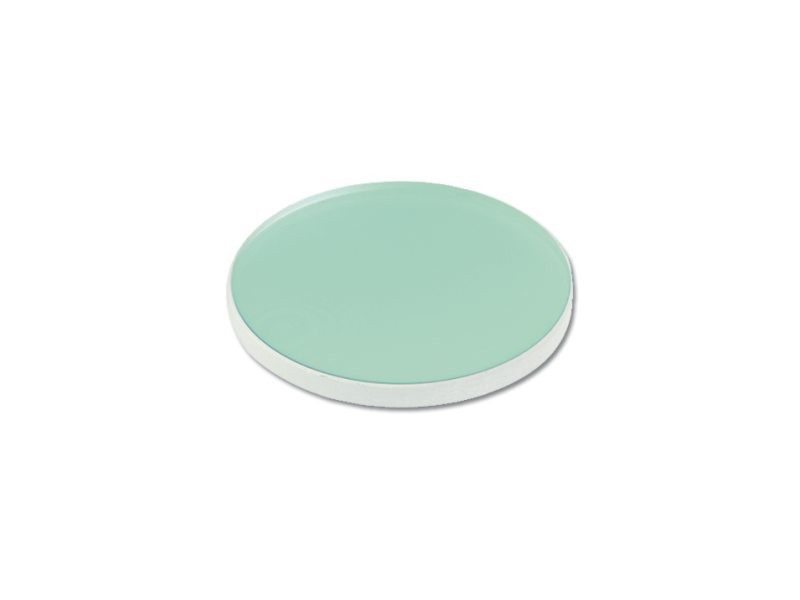

355mm Reflective Red Dichroic Mirror
Name: 355mm Reflective Red Dichroic Mirror
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
355mm Reflective Red Dichroic Mirror Parameters
Reflect 1064nm, Ravg>99%
Transmit 1064nm, Tavg>99%
Reflect red light, Ravg>97%
Transmit red light, Tavg>97%
Transmit UV 355nm, Tavg>95%
Reflect UV 355nm, Ravg>99%

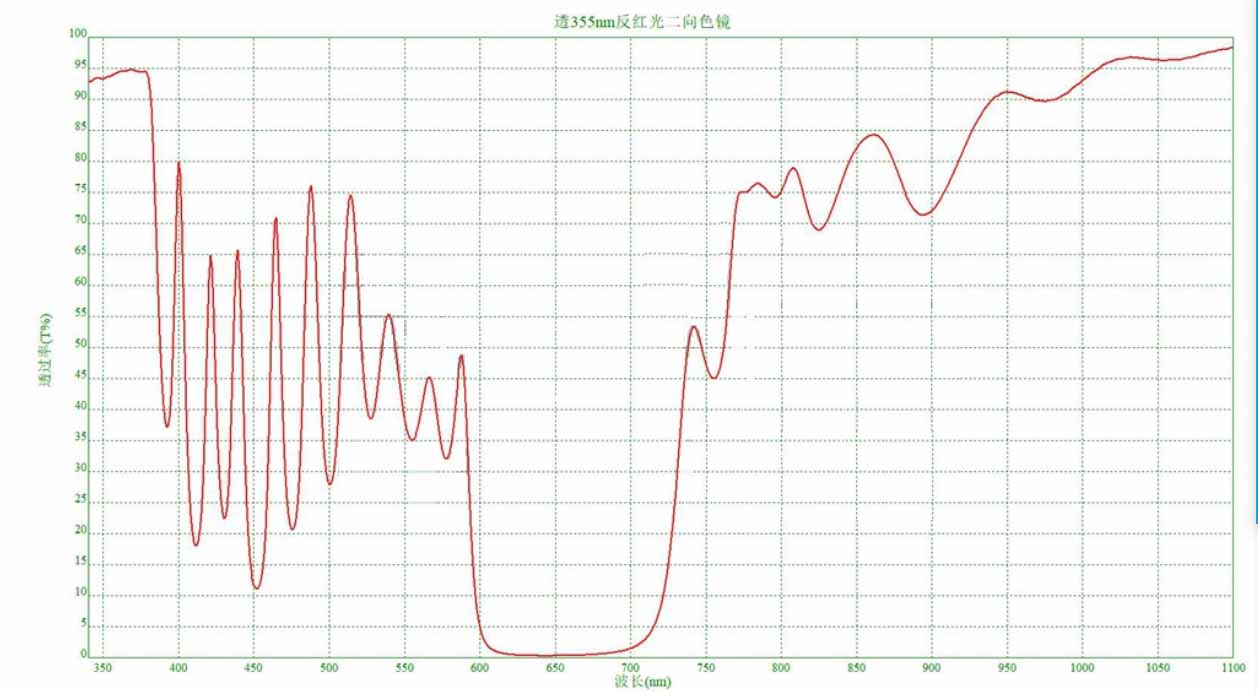

355mm Reflective Red Dichroic Mirror Transmittance Spectrum
