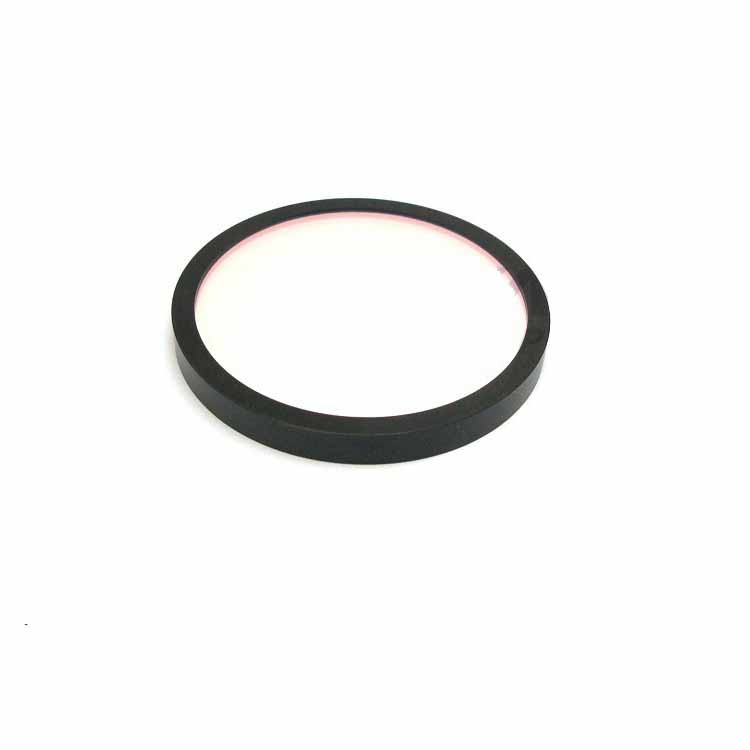

Name: Xenon Lamp Filters
Substrate material: Fused silica
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
The substrate is selected from high temperature resistant quartz optical glass substrate, tempered optical glass substrate, etc.
Imported coating equipment manufacturing
Small wavelength temperature drift
High cutoff, high transmittance
Durable hard film layer
High temperature resistance
Used for photocatalytic light source, xenon light source, sun simulation light source, etc.
Model | Type | Size |
CUT400-LPF400-D | Cut-off filter | D63mm |
CUT420-LPF420-D | Cut-off filter | D63mm |
CUT700-LPF700-D | Cut-off filter | D63mm |
CUT800-LPF800-D | Cut-off filter | D63mm |
400nm-BP400-D | Visible Bandpass Filter | D63mm |
405nm-BP405-D | Visible Bandpass Filter | D63mm |
420nm-BP420-D | Visible Bandpass Filter | D63mm |
435nm-BP435-D | Visible Bandpass Filter | D63mm |
450nm-BP450-D | Visible Bandpass Filter | D63mm |
475nm-BP475-D | Visible Bandpass Filter | D63mm |
500nm-BP500-D | Visible Bandpass Filter | D63mm |
520nm-BP520-D | Visible Bandpass Filter | D63mm |
550nm-BP550-D | Visible Bandpass Filter | D63mm |
600nm-BP600-D | Visible Bandpass Filter | D63mm |
650nm-BP650-D | Visible Bandpass Filter | D63mm |
700nm-BP700-D | Visible Bandpass Filter | D63mm |
350nm-BP350-D | UV Bandpass Filter | D63mm |
365nm-BP365-D | UV Bandpass Filter | D63mm |
380nm-BP380-D | UV Bandpass Filter | D63mm |
AM1.5G | AM1.5G Simulated Sunlight Filter | D63mm |
Note:
1. For detailed parameter information and spectral curves, please call us for consultation
2. With other xenon lamp interface sizes, single-piece customization service is available
3. For bulk purchases and customization services, please call Borisun Optics
