Ultra narrow band Filter 632.8 FWHM 3nm

Name: Ultra narrow band Filter 632.8 FWHM 3nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

Ultra narrow band Filter 632.8 FWHM 3nm Product Details:

BPA632.8-3nm

Ultra-narrow bandpass filter

Incident angle: 0 degrees

Center wavelength: 632.8nm

Bandwidth: 3nm

Wavelength deviation: ±0.5nm

Cut-off depth: OD5

Transmittance: greater than 90%

Cut-off range: 200-1100nm

[Return and exchange service is not provided for non-quality issues, and seven-day unconditional return and exchange is not supported]

Other sizes are accepted

For dealers and bulk purchases, please contact the sales department of Ruiyan Optics Head Office

Our company provides true parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

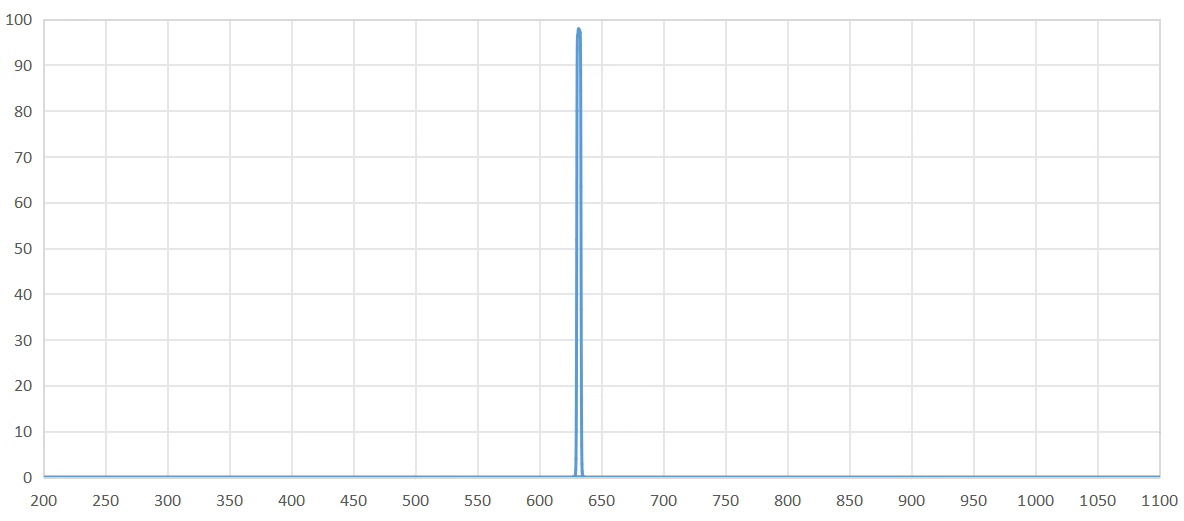

Full spectrum curve measurement：

band pass filter 632.8nm 3nm.png
