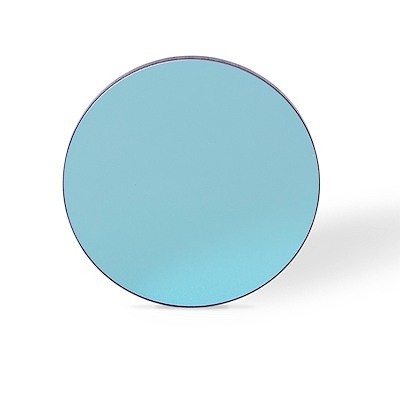

Ultra Narrowband Filter 343.3nm FWHM 1.2nm

Name: Ultra Narrowband Filter 343.3nm FWHM 1.2nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

EMAIL

Ultra narrowband Filter 343.3nm FWHM 1.2nm Product Details:

BPA343.3-1.2nm

Ultra-narrow bandpass filter

Incident angle: 0 degrees

Center wavelength: 343.3nm

Bandwidth: 1.2nm

Wavelength deviation: ±0.5nm

Cut-off depth: OD7

Transmittance: greater than 75%

Cut-off range: 300-900nm


Features of U-BPA Series Ultra-narrow Bandwidth Filters

■ Plasma deposition process coating

■ Minimum 0.2nm ultra-narrow bandwidth, ultra-steep transition band, and a cutoff depth of up to OD12

■ Accept parameter customization services

■ Accept imported ultra-narrow bandwidth secondary customization and batch customization services

For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides true parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service
