UV Array CCD Filter
Name: UV Array CCD Filter
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

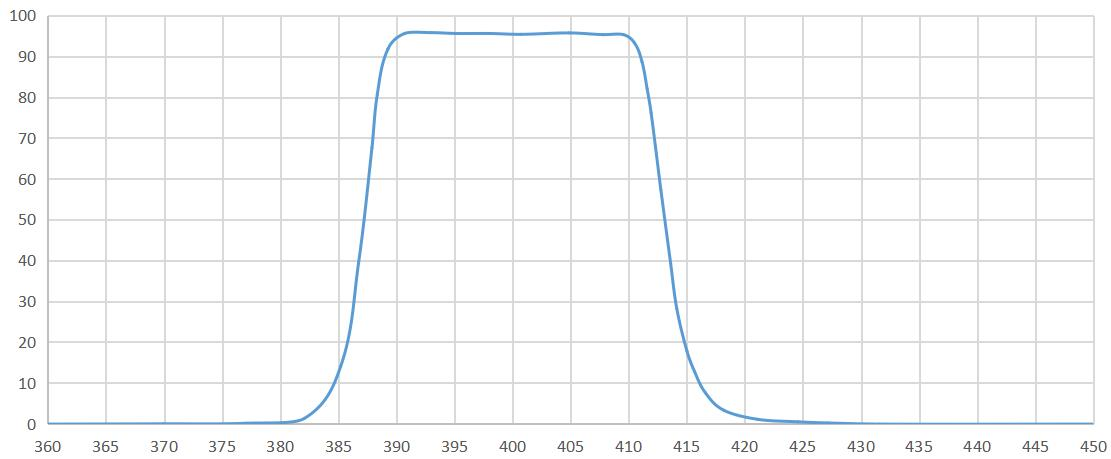

UV Bandpass Linear Array CCD Filter
Cut-off range 362-445nm
Cut-off depth > OD3@375nm
Transmittance > 90%@392nm
Transmittance > 90%@396nm
1%@422nm
Size 38.6x7mm
Thickness 0.8mm
