SRF Series Detector Flattening Filters
Name: SRF Series Detector Flattening Filters
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
Features:
Flattened spectral response of silicon photodiodes
High-quality filters developed by Borisun Optics
Application spectral range 380-780nm
Transmittance>80%@380nm
Transmittance> 30%@780nm
Easy to monitor power when used with broadband, white light sources
Reduces dynamic range requirements of photodiode circuits
Customized Services Available:
The following customized services are available
Customized 400 - 1100 nm
Customized 380-780 nm (800nm≥cut off≤350nm)
Other customized services required
Regular Stock:

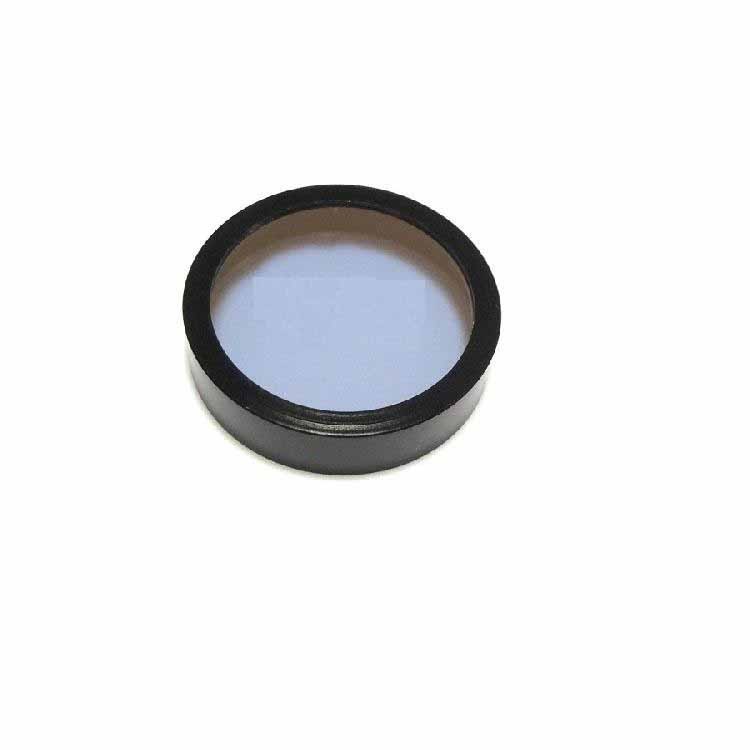

SRF11RY-D25.4X6; size diameter 25.4mm; thickness 6mm; with metal outer ring
SRF11RY-D22X0.55; diameter 22mm; thickness 0.55mm; without ring

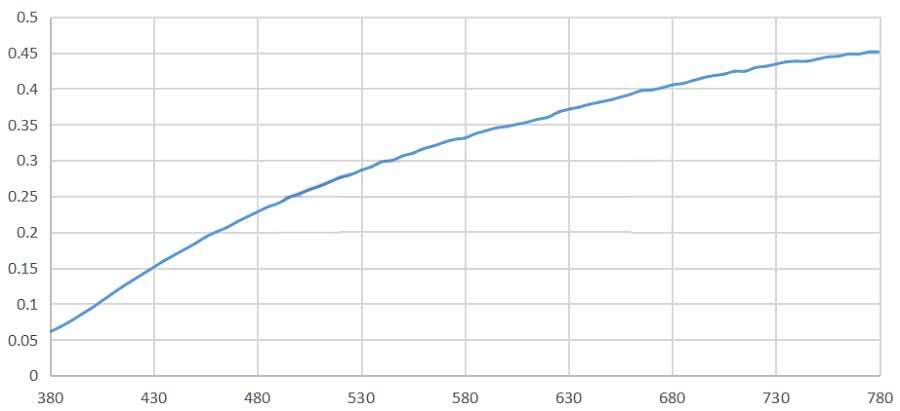

Detector Spectral Response Curve:

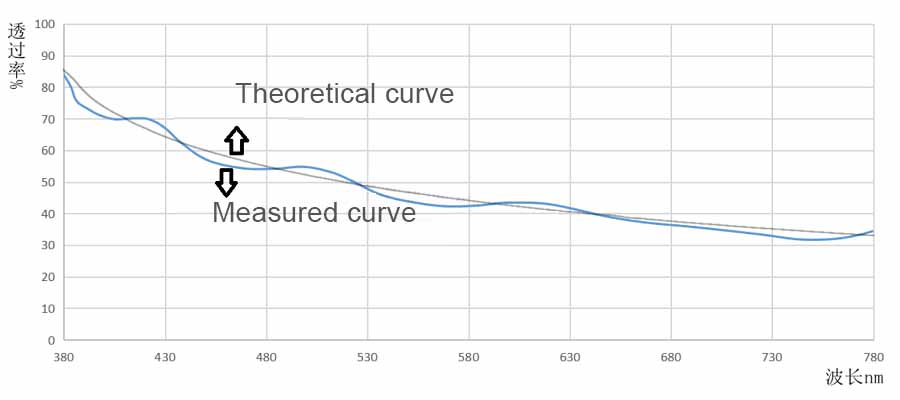

Theoretical Spectrum Design Curve of Flattening Filter and Measured Spectrum Curve of Physical Filter:

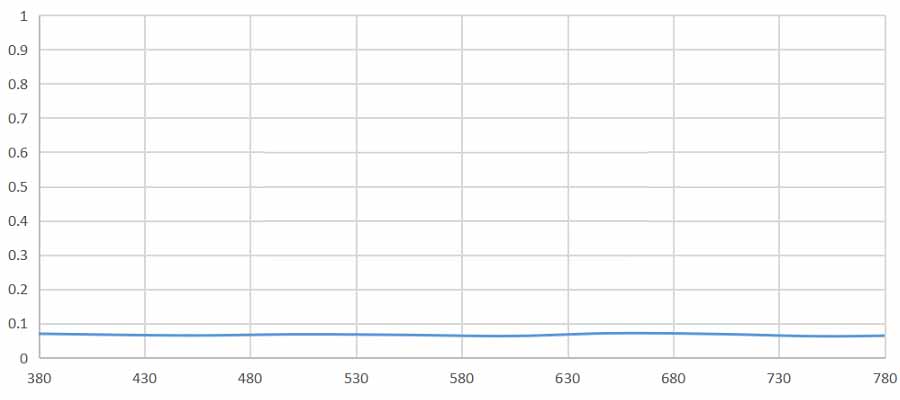

Target Flattening Spectral Response Effect:
