254nm Narrow Band Filter FWHM 10nm

Name: Narrow Band Filter 254nm FWHM 10nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

EMAIL

Narrow Band Pass Filter 254nm FWHM 10nm Product Details:

BP254-10nm

Ultra-narrow bandpass filter

Center wavelength: 254nm

Center wavelength deviation: ±2nm

Bandwidth: 10nm

Wavelength deviation: ±2nm

Transmittance: greater than 20%; 30%

Cut-off depth: OD3; OD4

Cut-off range: 200-1100nm; 200-1200nm


[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]

Other requirements and sizes can be customized

For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides real parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

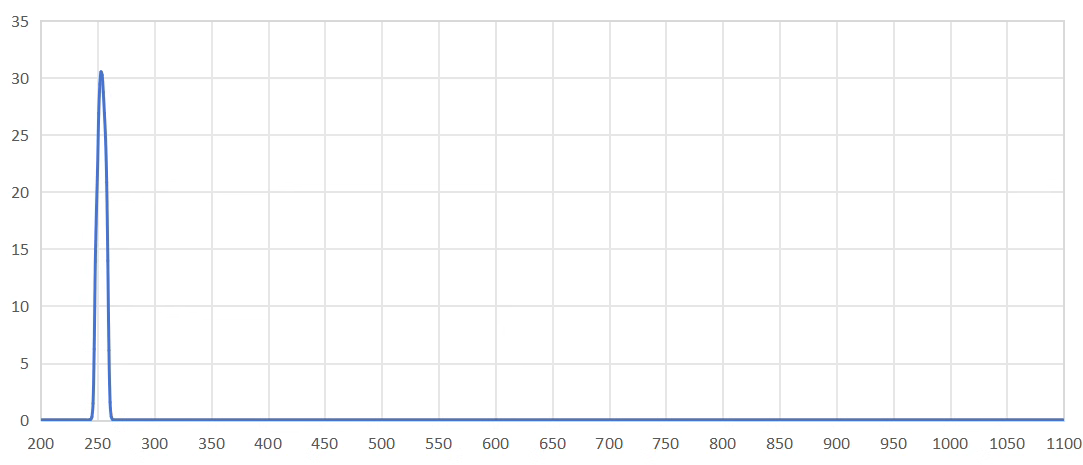

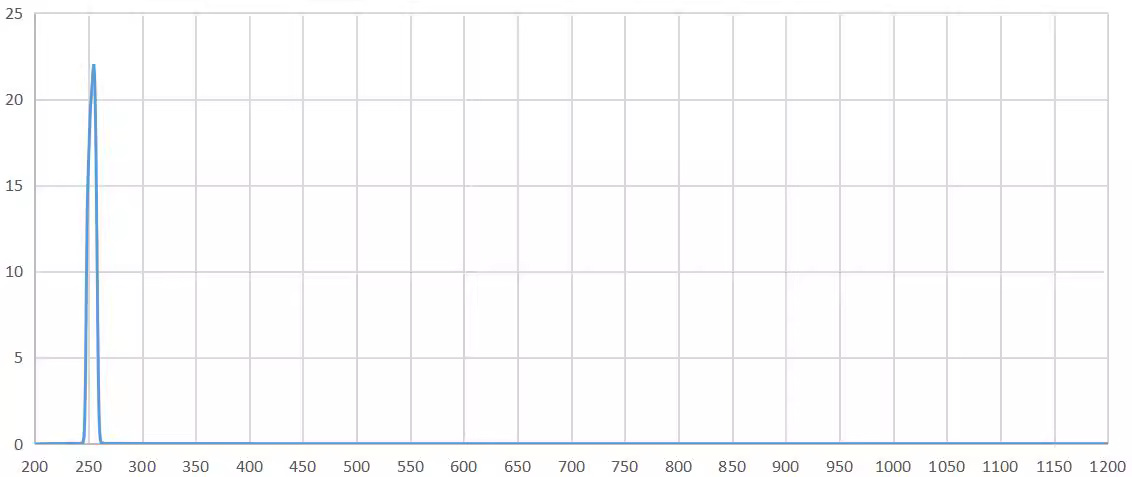

Full Spectrum Curve Measurement:

narrowband pass filter 254nm.png

narrow band pass filter 254nm.png
