193nm Narrow Band Filter FWHM 15nm

Name: Narrow Band Filter 193nm FWHM 15nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

EMAIL

Narrow Band Pass Filter 193nm FWHM 15nm Product Details:

BP193-15nm

Ultra-narrow bandpass filter

Center wavelength: 193nm

Center wavelength deviation: ±2nm

Bandwidth: 15nm

Wavelength deviation: ±2nm

Transmittance: greater than 12%

Cut-off depth: OD4

Cut-off range: 200-1100nm


[Note: This is a non-imaging product, and the cut-off depth of this product is only OD3]

[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]


For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides real parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

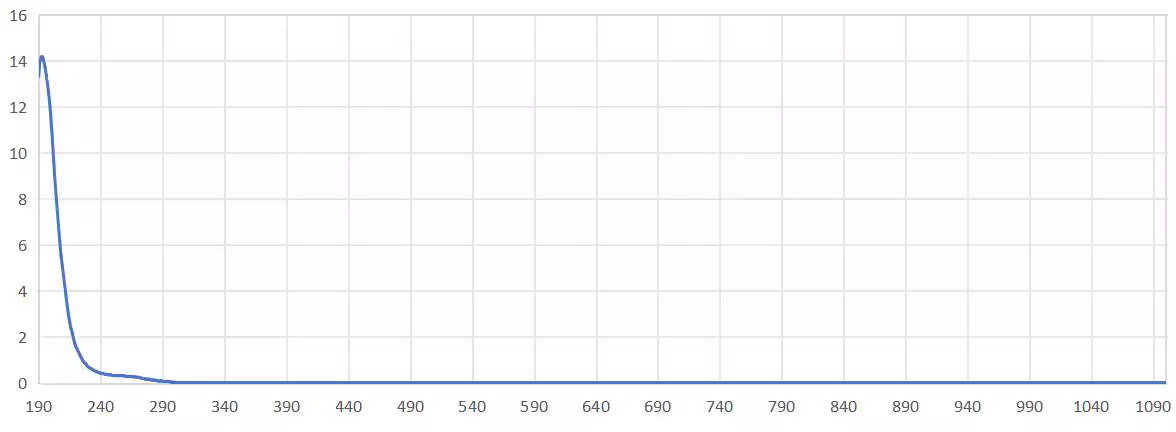

Full Spectrum Curve Measurement:

narrow band pass filter 193nm.png

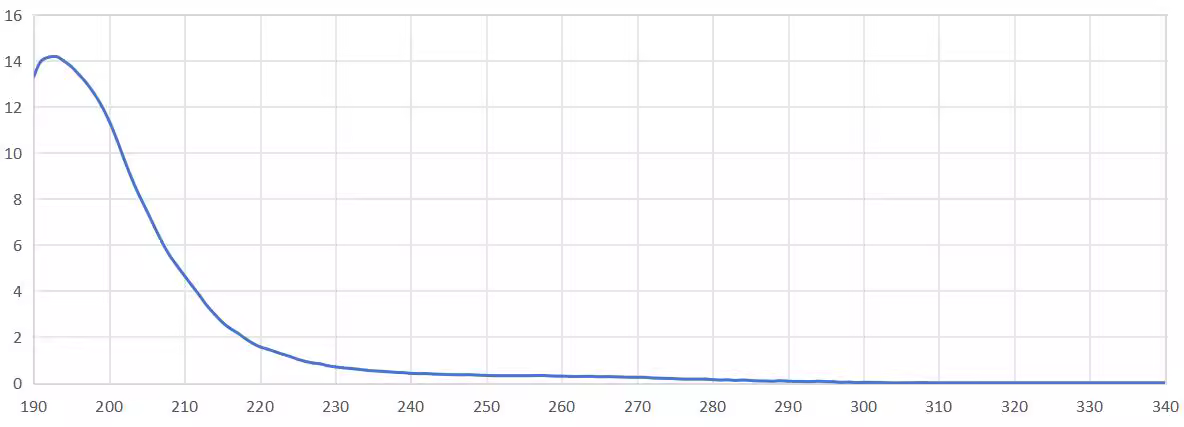

Local Spectrum Curve Measurement:

narrowband pass filter 193nm.png
