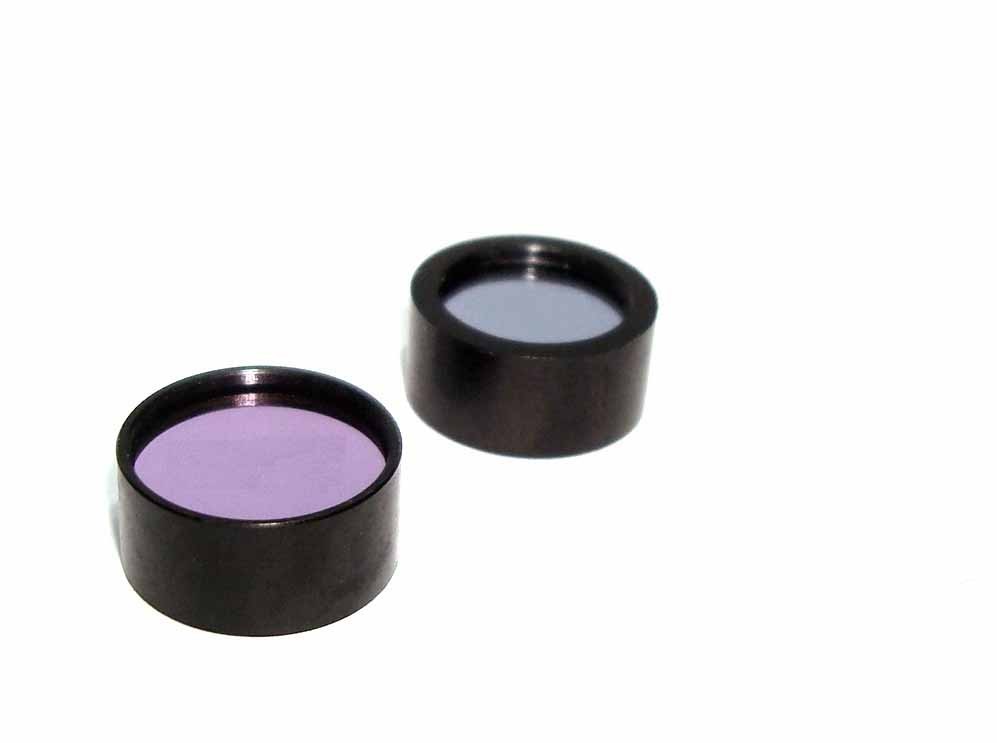

ELISA Filters

Bandpass filter is one of the important accessories of microplate reader. The performance parameters of the filter can directly affect the measurement results. Borisun Optics Department can provide a wide range of products for various microplate reader brands. The advantages of our matching filters are narrow bandwidth, steep transition band, high transmittance, wide cutoff range, excellent stray light suppression effect, high cutoff depth, etc.

ELISA Filter, Biochemical Analyzer Filter Commonly Used Wavelength

Two specifications are available: without metal outer ring/with metal outer ring:

A, common specifications with metal ring:

D10X6mm; D15x6MM; D15X7mm; D12X6mm; D12.5X3.5mm; D12.7X6mm; D25x6mm, etc.

B, without metal outer ring/with metal outer ring, the size can be customized on demand

Cut-off depth: OD4; OD5; OD6

Cut-off range: 200-800nm; 200-1100nm; 200-1200nm; 200-1800nm; 200-800nm; 300-800nm, etc.

Transmittance: ≥60%——≥85%;

Bandwidth: 8nm; 10nm; 12nm; 15nm——50nm, etc.

If you are interested in this product and want to know more detailed product information, please fill in the following form to contact the manufacturer directly:
