AOI Automatic Inspection Instrument Filter
Name: AOI Automatic Inspection Instrument Filter
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%
AOI automatic inspection instrument filter
AOI automatic optical inspection instrument filter

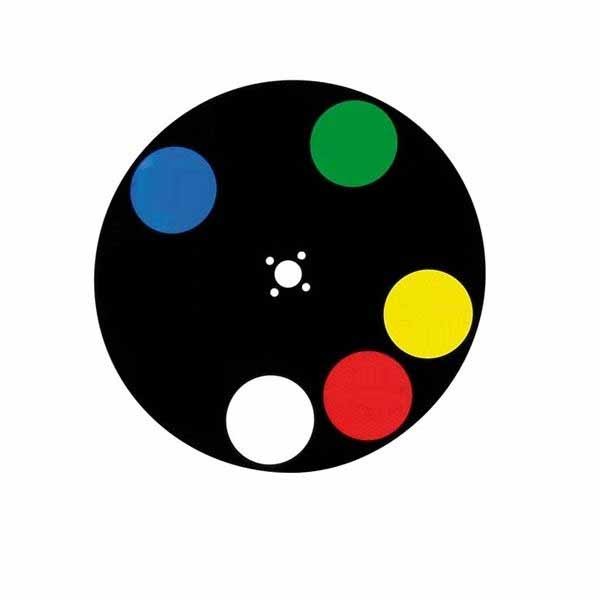

AOI red, blue, green and yellow filter
AOI detection lighting filter
Size: diameter 18mm, 20mm, 24mm, 25mm
Purple spectrum: 380-450nm; customizable center wavelength 430nm
Blue spectrum: 450-475nm; customizable center wavelength 460nm
Cyan spectrum: 476-495nm; customizable center wavelength 480nm
Green spectrum: 495-570nm; customizable center wavelength 540nm
Yellow spectrum: 570-590nm; customizable center wavelength 580nm
Orange spectrum: 590-620nm; customizable center wavelength 610nm
Red spectrum: 620-750nm; customizable center wavelength 660nm

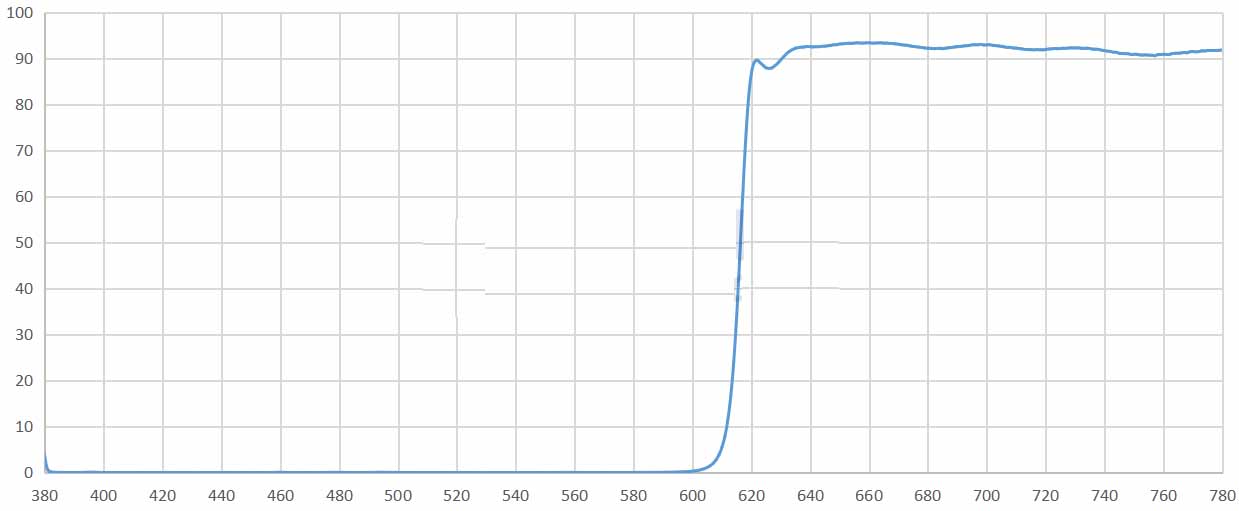

Red Filter

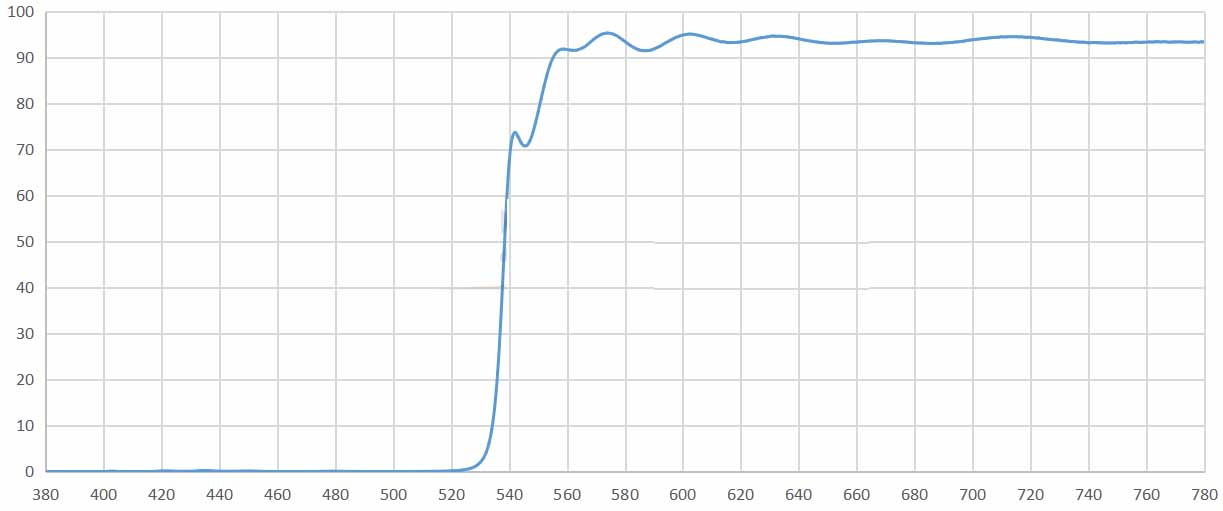

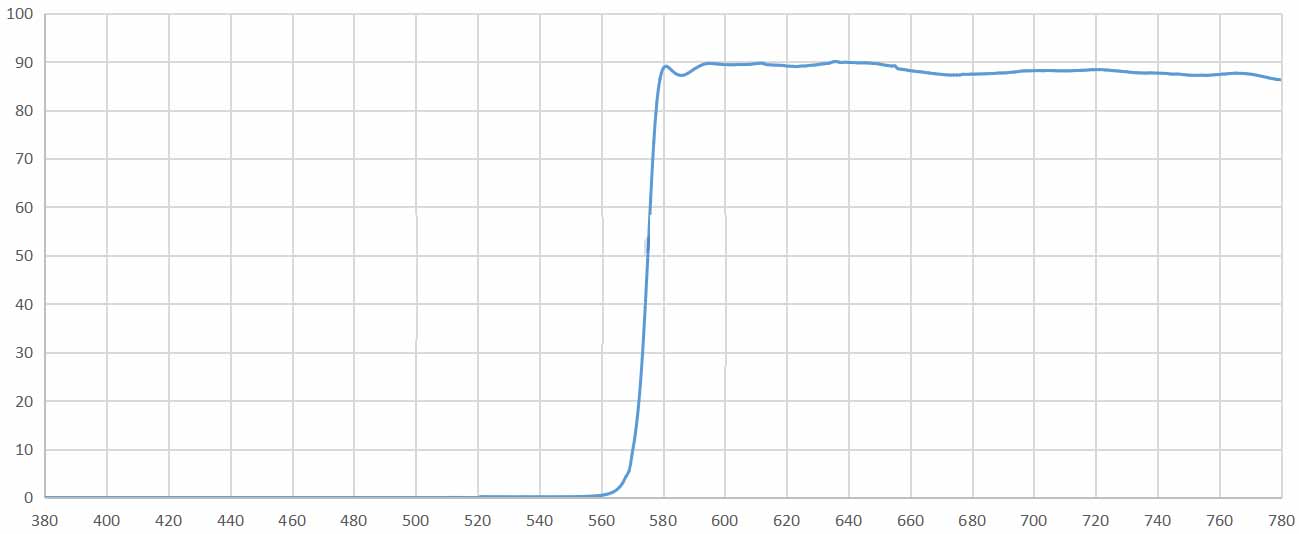

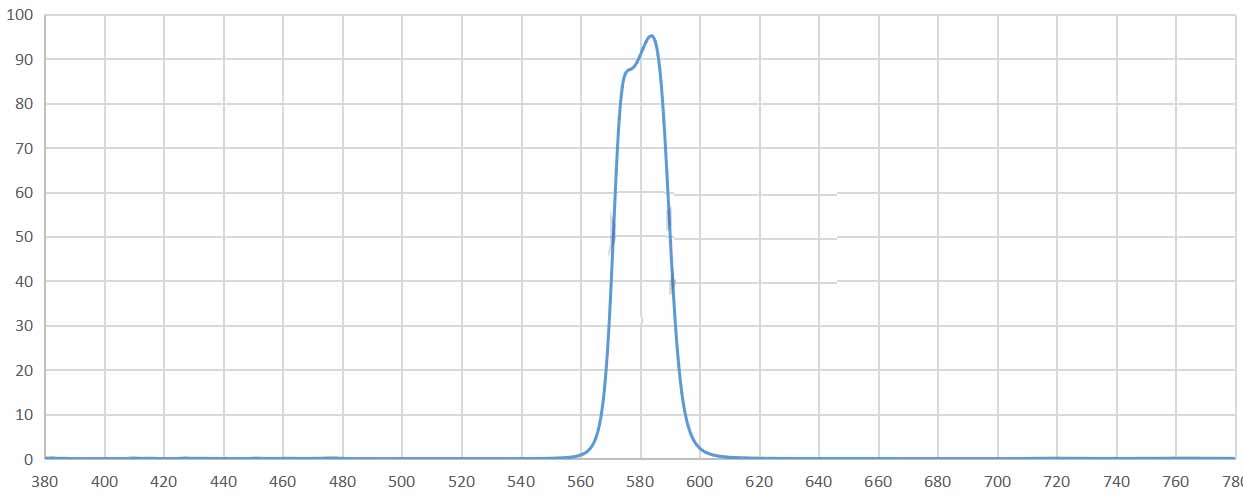

Yellow Filter

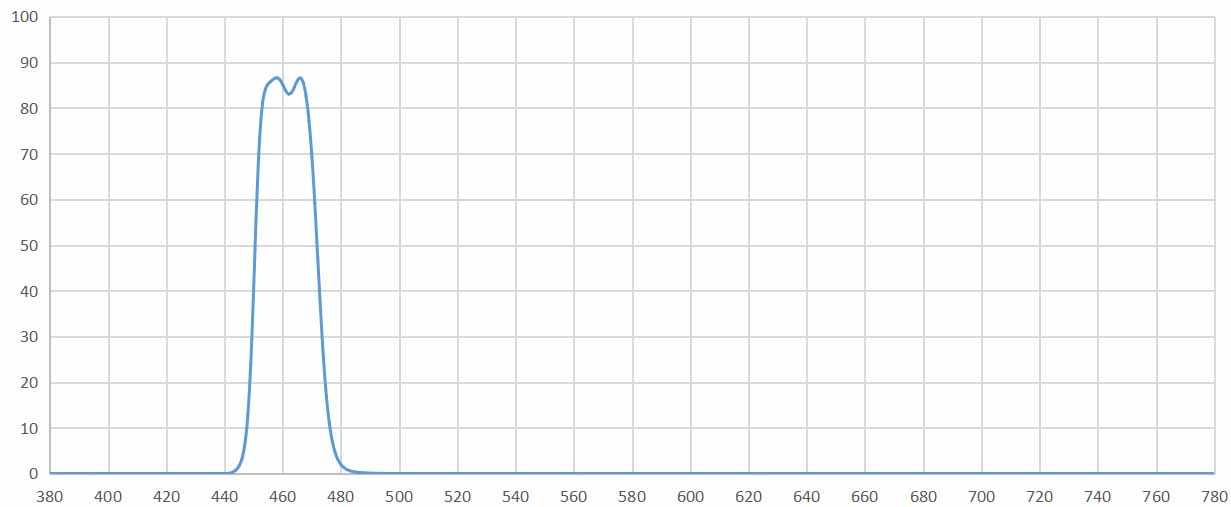

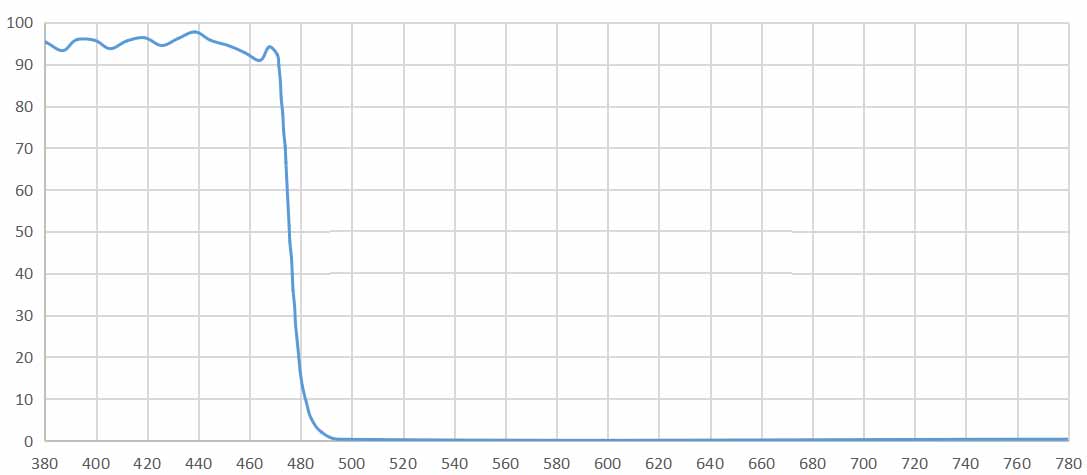

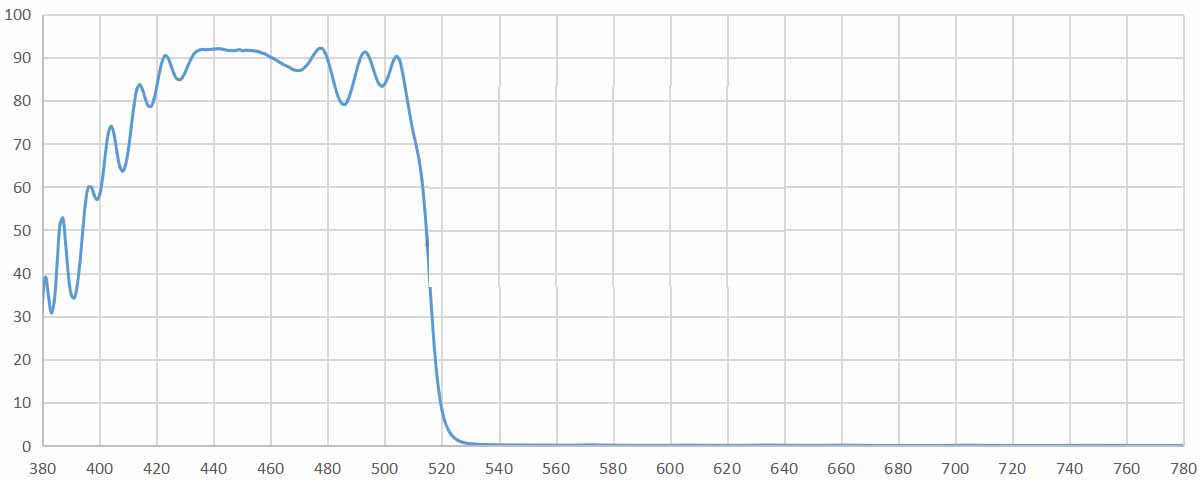

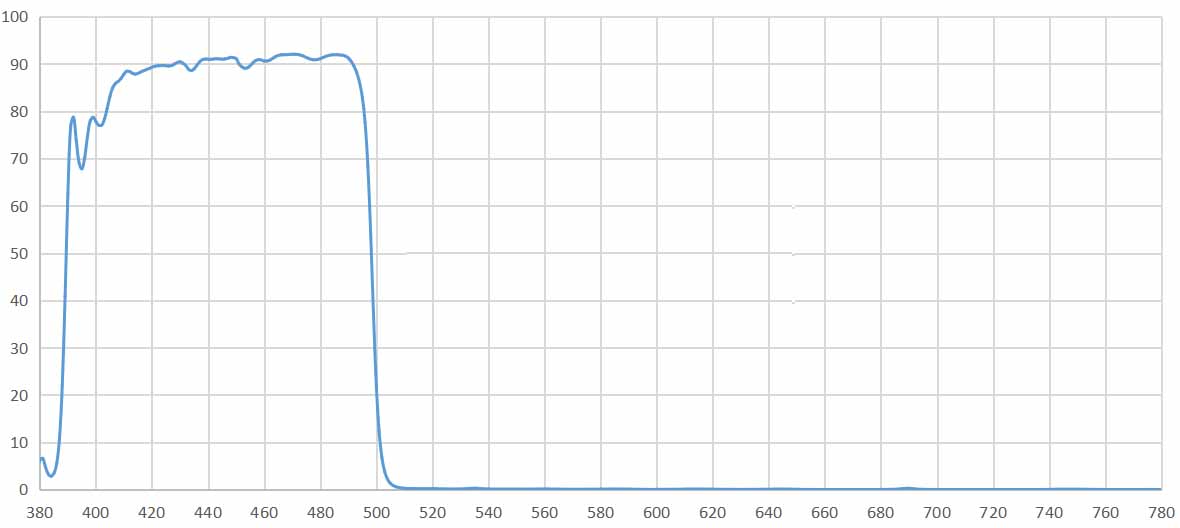

Blue Filter

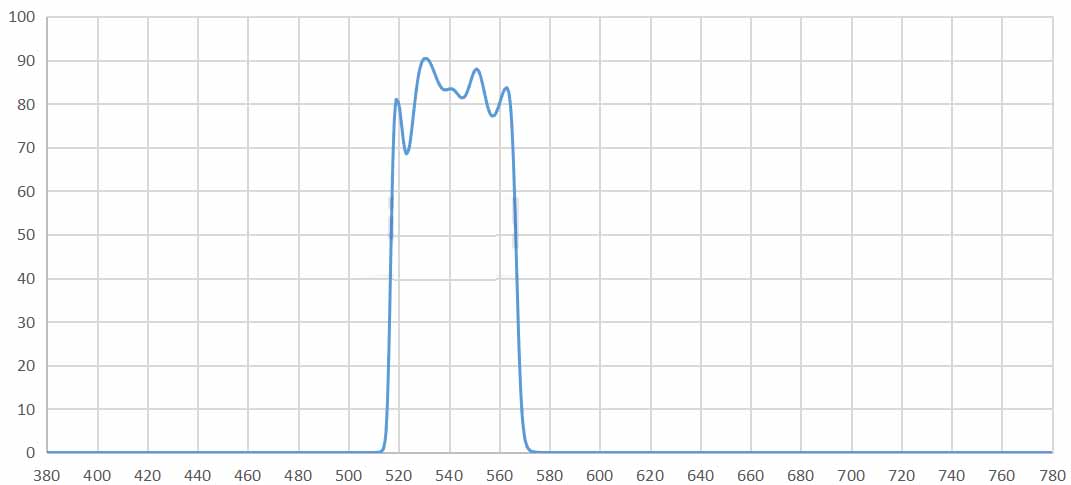

Green Filter
