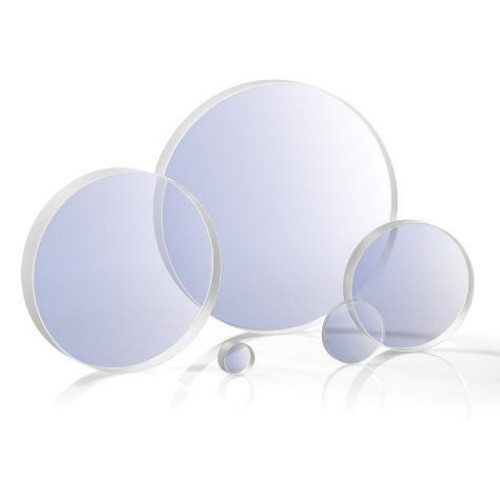

520nm Narrow Band Filter FWHM 30nm

Name: 520nm Narrow Band Filter FWHM 30nm
Substrate material: Optical Glass
Smoothness: 80-50 MIL-C-48497A
Clear aperture: >90%
Edge chamfer: <0.2mm
Operating temperature: -40°C /+180°C (low stress state)
Storage environment: Constant temperature ~23°C; Constant humidity <40%

EMAIL

Narrow Band Pass Filter 520nm FWHM 30nm Product Details:

BP520-30nm

Narrow bandpass filter

Center wavelength: 520nm

Center wavelength deviation: ±2nm

Bandwidth: 30nm

Wavelength deviation: ±2nm

Transmittance: greater than 80%

Cut-off depth: OD3; OD4; OD5; OD6

Cut-off range: 200-1100nm


High-transmittance products can be customized (products with a maximum transmittance of 20% can be produced for total nitrogen analysis applications)

[No return or exchange service is provided unless it is a quality issue, and no return or exchange is supported within seven days without reason]

Other requirements and sizes can be customized

For dealers and bulk purchases, please contact the sales department of Borisun Optics Head Office

Our company provides real parameters and accepts comparison tests by third parties or measurement departments

If the parameters do not meet the requirements, our company provides unconditional return and exchange service

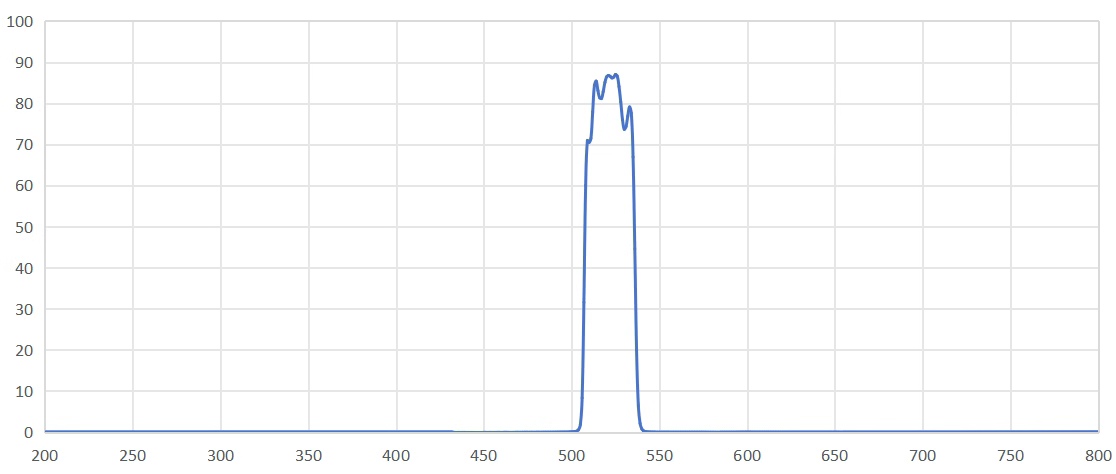

Full Spectrum Curve Measurement:

bandpass filter 520NM.png
